Premium PTFE Lined Pipe and Fittings Manufacturer for Industrial Piping

In highly corrosive industrial processing environments, managing aggressive chemical fluids safely and efficiently is a paramount challenge for piping engineers. Traditional metallic pipes often fail prematurely under chemical attacks, leading to hazardous leaks, costly downtime, and frequent maintenance. This is where PTFE Lined Products become the industry standard solution. Polytetrafluoroethylene (PTFE) offers near total chemical inertness, an exceptionally low coefficient of friction, and a wide operating temperature range. By fusing the mechanical strength of outer carbon steel with the peerless corrosion resistance of a heavy wall PTFE liner, steel lined PTFE piping systems deliver the ultimate containment solution for acids, alkalis, and organic solvents.

Comprehensive Range of PTFE Lined Fittings and Components

To construct a reliable and completely leak free processing system, your piping layout requires various configurations. Below is an expert breakdown of essential PTFE Lined Fittings engineered to maintain liner integrity across every turn and intersection.

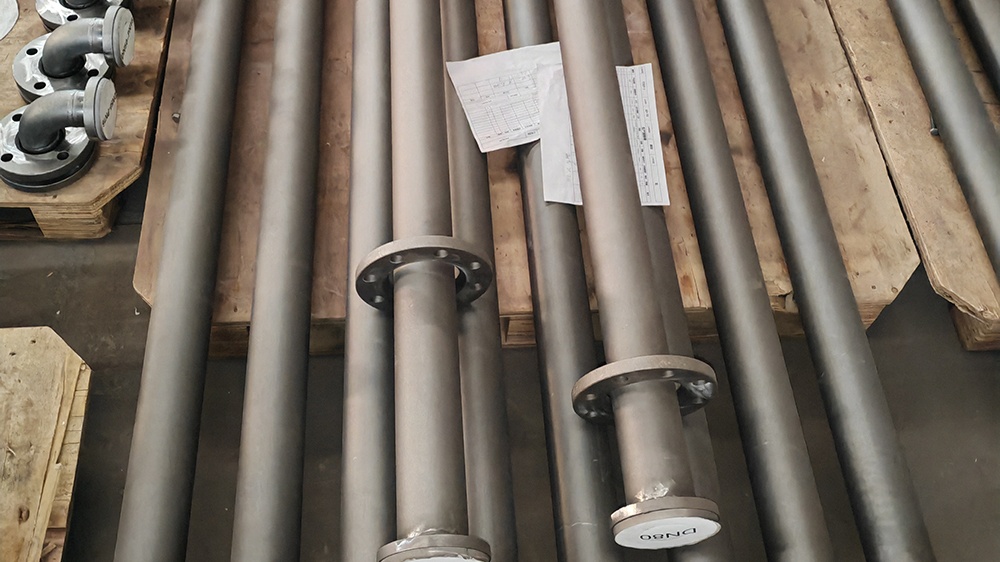

PTFE Lined Pipe

The foundation of any fluid transport system. Our steel lined PTFE pipes are fabricated using seamless carbon steel housings combined with high density, virgin PTFE liners. Utilizing advanced thermal locking techniques, the liner resists vacuum collapse and thermal cycling, making it ideal for continuous chemical processing lines.

PTFE Lined Elbow

Available in 45 degree and 90 degree long or short radius configurations. Fabricating a reliable PTFE Lined Elbow requires specialized molding or paste extrusion technology to ensure consistent liner wall thickness on both the inner and outer radii, eliminating weak points where stress concentration occurs.

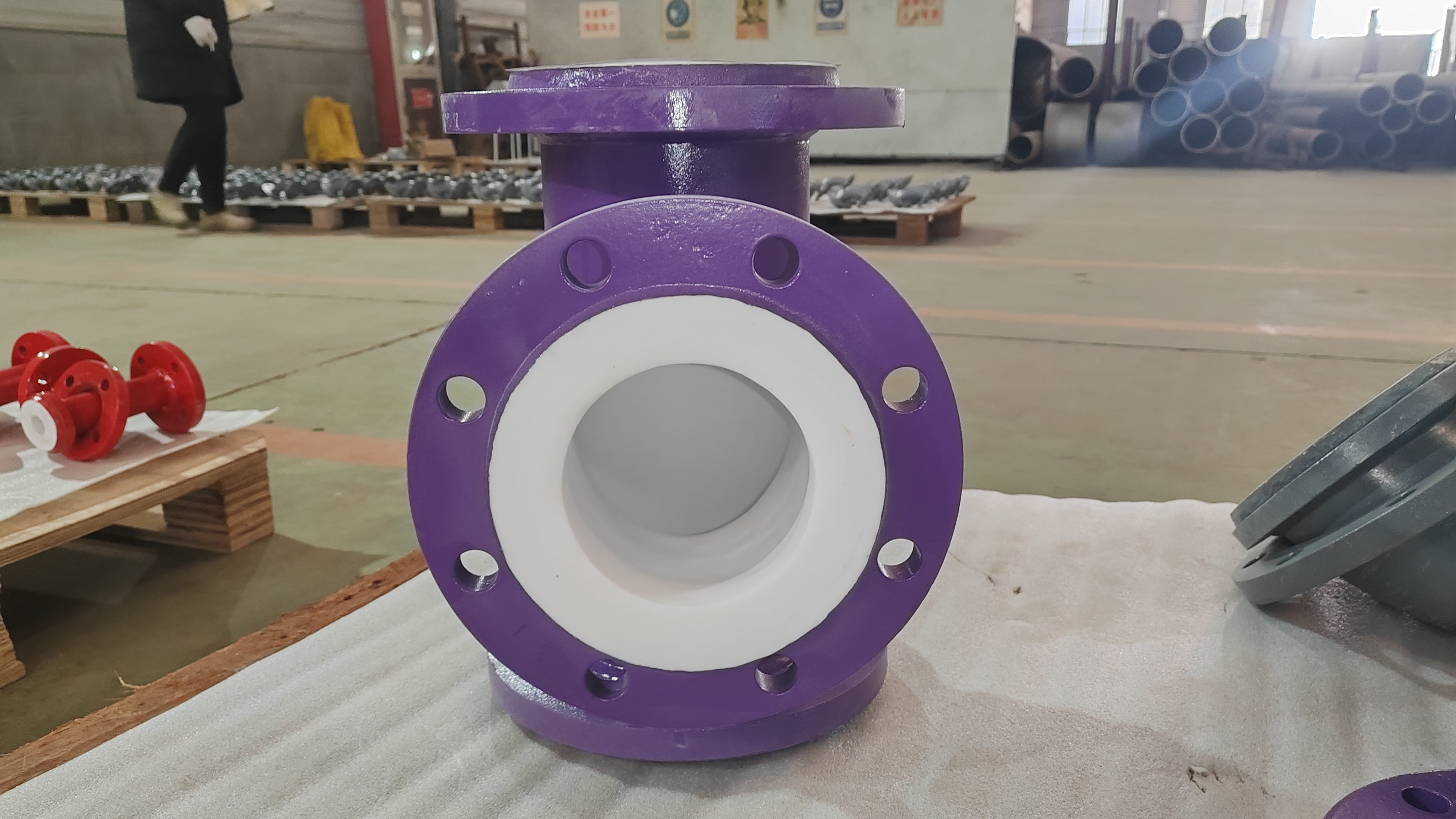

PTFE Lined Tee and Cross

Designed for multi directional fluid splitting and distribution. A PTFE Lined Tee or PTFE Lined Cross features precise liner flaring over the metallic flanges, providing a uniform sealing face that prevents media from leaking or coming into contact with the base metal housing.

PTFE Lined Concentric and Eccentric Reducer

When transition across pipe diameters is required, flow dynamics and line draining must be strictly managed. PTFE Lined Concentric Reducers are used primarily on vertical piping runs to maintain center line alignment of the fluid flow. PTFE Lined Eccentric Reducers are crucial for horizontal pipelines to ensure flat bottom or flat top alignment, preventing liquid pooling or gas pocket entrapment in highly sensitive corrosive lines.

PTFE Lined Flange and Blind Flange

Secure connections and positive isolations are vital for system safety. PTFE lined flanges provide the robust bolt load bearing support needed for thermal expansion, while a PTFE Lined Blind Flange offers temporary or permanent positive isolation at pipe terminations, fully protected against internal chemical mist or liquid spray.

Manufacturing Excellence and Quality Assurance

When global procurement teams look for a long term partner, trust and verification are key. To ensure total compliance with international industrial safety parameters, our manufacturing process implements rigorous quality checks. First, all finished PTFE lined productsundergo 100 percent high voltage electrostatic spark testing, typically at 10kV to 15kV, to ensure absolute liner continuity and the zero presence of pinholes or micro cracks. Second, testing systems under elevated hydrostatic pressure and simulated full vacuum conditions ensures that the mechanical bonding between the steel body and the fluoropolymer liner handles the roughest industrial environments. Finally, we only utilize premium, virgin fluoropolymer resins from certified global suppliers to ensure superior tensile strength, chemical elongation properties, and extended operational lifespans. All products comply fully with international standards such as ASTM F1545 and ASME B16.5.

Conclusion: Choose the Right PTFE Lined Piping System

Investing in superior grade PTFE lined pipes and fittings is an investment in your plant safety, efficiency, and long term operating profit. Whether you are engineering a grassroots petrochemical plant, upgrading an acid distribution network, or configuring a pharmaceutical high purity line, choosing components with flawless lining engineering guarantees peace of mind. Contact our technical engineering desk today for specialized design assistance, full CAD configurations, and competitive factory direct project quotes.
