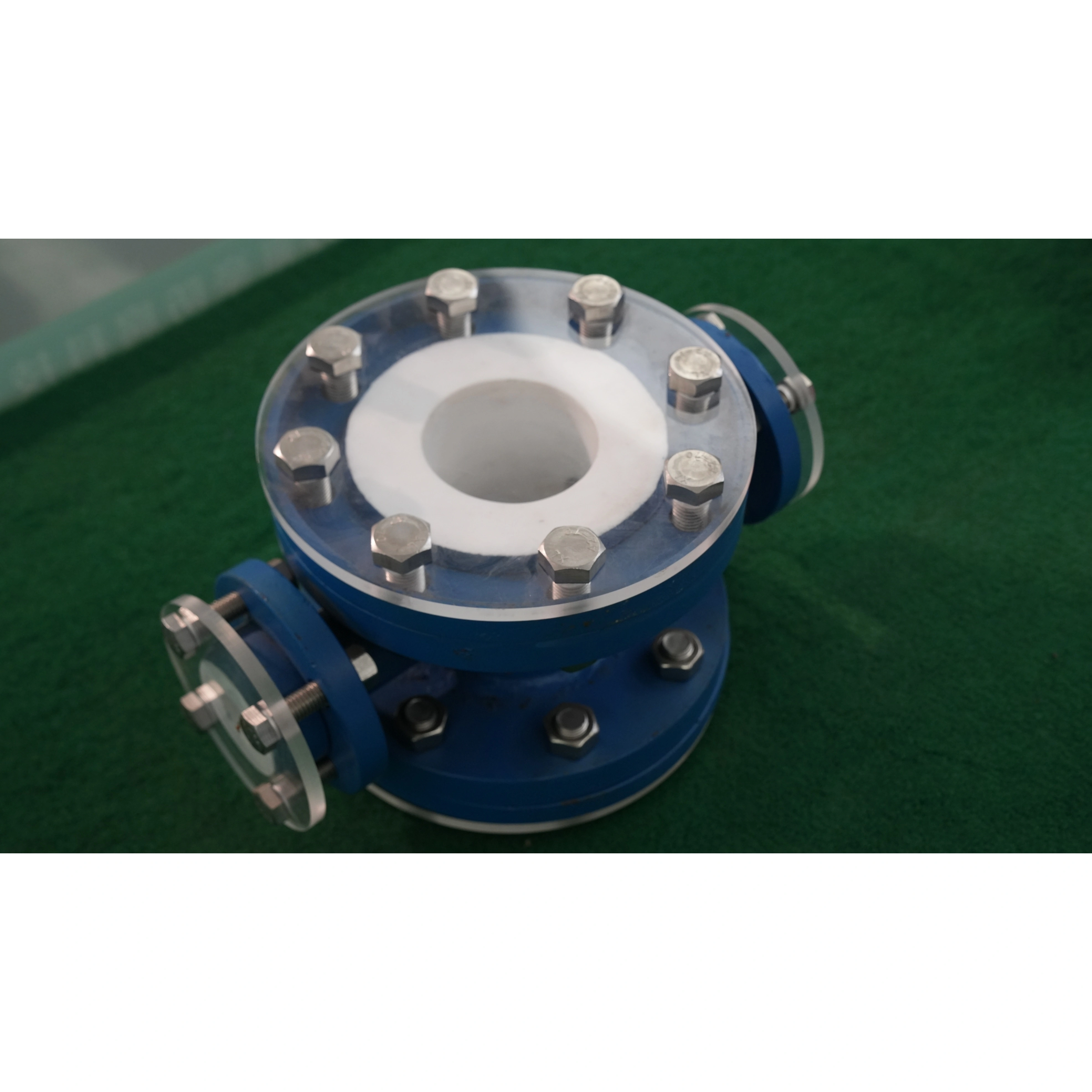

PTFE & PFA Lined Crosses | Corrosion Resistant Crosses

The PTFE/PFA lined cross (four-way pipe fitting) is a critical multi-directional component engineered for chemical distribution, fluid splitting, and manifold mixing networks. Designed to operate in severe fluid processing environments that present extreme corrosion risks, this component features a robust, pressure-containing metallic outer housing mechanically bonded with an uninterrupted, seamless internal liner of premium PTFE or PFA.

By utilizing a four-way cross configuration, process engineers can streamline piping layouts, reduce the number of flanged joints, and optimize directional fluid flow while ensuring absolute isolation between corrosive process media and the metallic structural shell. This engineered design completely prevents internal localized chemical attacks, galvanic corrosion, and metallic cross-contamination.

Material Substrates and Lining Process Control

Carbon & Stainless Steel Pressure Housings

The heavy-wall metallic outer cross housing provides the structural strength needed to withstand high piping stress, internal thermal expansion, and mechanical shock loads. Materials comply strictly with global industrial piping codes:

• ASTM A106 Grade B / ASTM A53 Grade B: High-strength seamless carbon steel for standard industrial chemical processing and high-temperature manifolds.

• ASTM A312 Grade 304 / 316 / 316L: Premium austenitic stainless steel options recommended for cleanrooms, pharmaceutical environments, or applications facing aggressive external atmospheric corrosion (e.g., offshore facilities).

Advanced Fluoropolymer Linings (PTFE & PFA)

The selection of internal lining material depends on the internal flow velocities, operational temperatures, and chemical concentration of the process stream:

• Virgin PTFE (Polytetrafluoroethylene): Provides complete chemical resistance across the entire 0–14 pH range. Its naturally low friction coefficient prevents product buildup, crystallization, and chemical scaling within the internal multi-directional junction.

• Melt-Processable PFA (Perfluoroalkoxy Alkane): Particularly recommended for cross fittings due to its excellent melt-flow processability. PFA molding ensures absolute lining uniformity across complex internal geometric radiuses and intersecting flow profiles, delivering higher mechanical durability during severe thermal cycling.

Manufacturing Methodologies for Intersecting Geometries

• High-Density Molding Processing: Because cross fittings feature complex internal geometries with perpendicular intersecting walls, automated isostatic molding or transfer molding techniques are utilized. This process forces the fluoropolymer matrix into the housing under uniform hydraulic pressure, ensuring a dense, homogeneous structure completely free of micro-porosity and structural thinning at the inner radiuses.

• High Permeation Resistance: The dense, high-compression lining reduces the permeation of aggressive volatile vapors and low-molecular-weight acids, protecting the steel boundary from interstitial attack.

• Full Vacuum Stability: The internal lining is mechanically locked into machined anchoring grooves within the steel housing casting. This structural integration allows the lined cross to maintain full vacuum stability and prevents liner collapse or buckling during sudden negative pressure shifts or high-temperature cycles.

Technical Parameters & Standards Compliance

To ensure seamless integration into international engineering procurement frameworks and automated processing setups, all manufacturing processes conform to global compliance standards:

System Performance Specifications

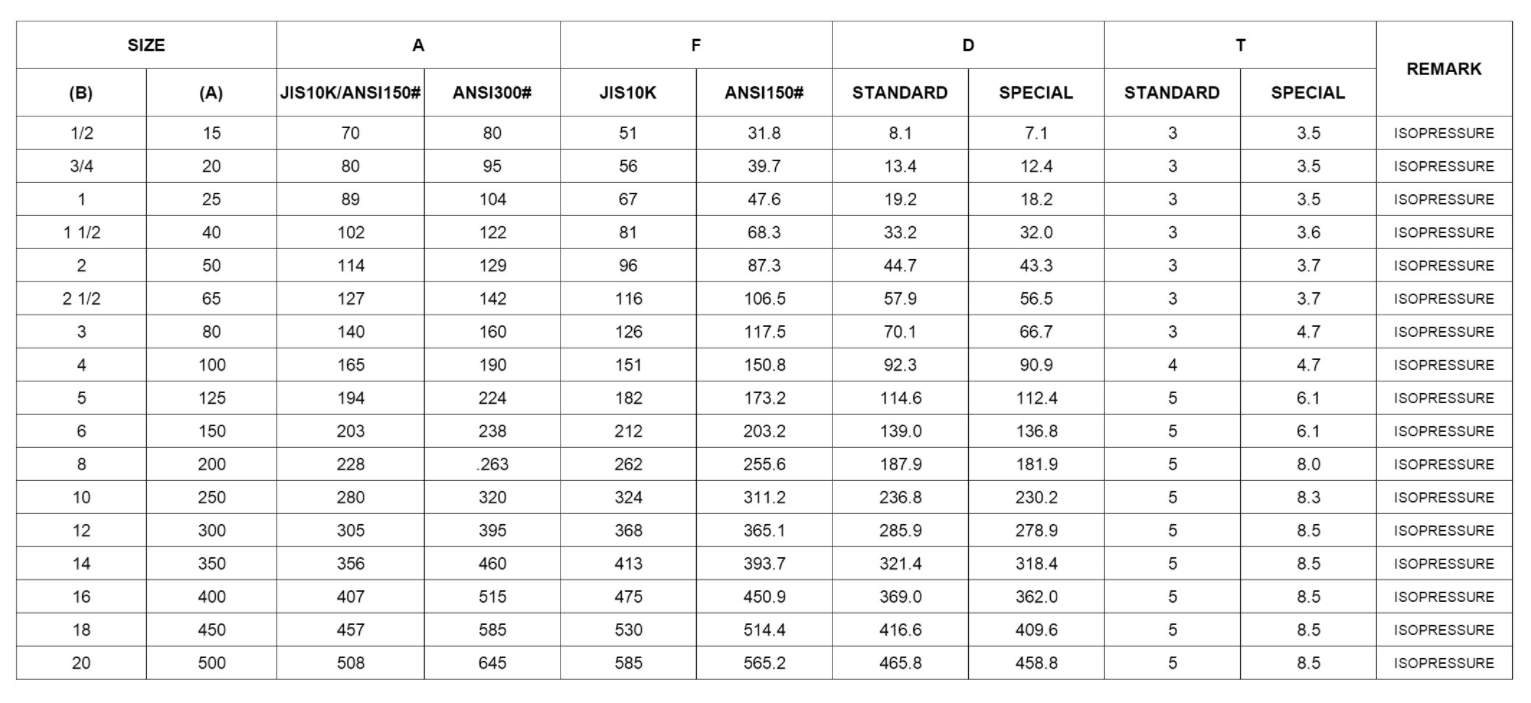

• Nominal Size Spectrum: DN15 to DN1200 (1/2" up to 48" nominal diameter)

• Pressure Class Parameters: PN10, PN16, and ASME Class 150 (150LB)

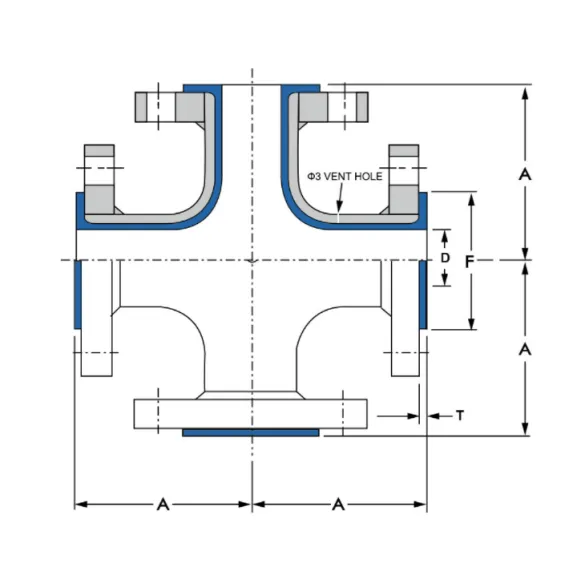

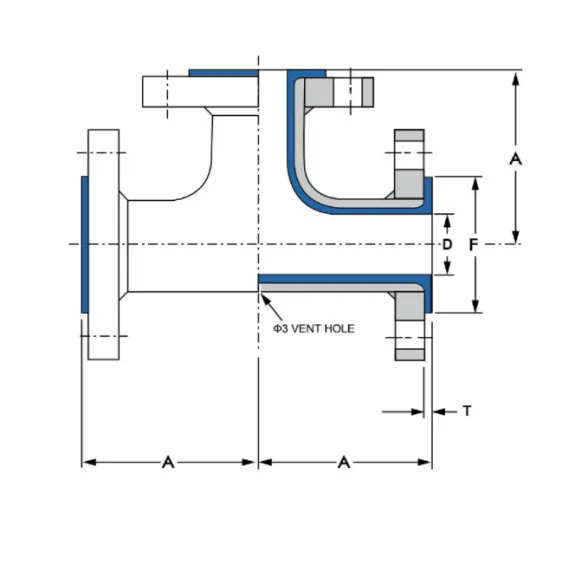

• Face-to-Face Dimensions: Standard dimensional layouts conforming to industry benchmarks, or custom manufactured as per specific project Material Take-Off (MTO) and isometric manifold blueprints.

Applicable Engineering Standards

• Design & Manufacture: GB/T 12237, API 6D (Adapted for lined fittings geometry)

• Flange Attachment & Dimension Standards: ASME B16.5, EN1092-1, DIN 2501, HG/T 20592, JIS 10K

• Face-to-Face Core Dimensions: Conforming to ASME B16.10, GB/T 12221, or specialized customer MTO parameters.

Primary Cross-Industry Applications

The absolute chemical inertness and robust four-way distribution capability of these PTFE/PFA lined crosses make them essential for fluid routing in the following sectors:

• Chlor-Alkali Manufacturing: Critical for chlorine gas distribution, multi-directional caustic soda routing, and high-concentration hydrochloric acid synthesis loops.

• Chemical Process Manifolds (CPI): Used at major piping junctions for transferring, diverting, or blending bulk mineral acids, including concentrated sulfuric, hydrofluoric, and nitric acids.

• Pharmaceutical and Biotech Processing: Provides a non-contaminating, ultra-smooth fluid junction that prevents metal-ion extraction, facilitates efficient Clean-in-Place (CIP) flushing, and prevents bacterial or chemical accumulation.

• Semiconductor & Electronics Chemical Supply: High-purity distribution networks delivering electronic-grade ultra-pure chemicals, organic solvents, and concentrated acid-etching solutions to wafer processing lines.

• Petroleum Refining & Petrochemicals: Deployed in acid alkylation lines, sour water treatment facilities, and process piping carrying aggressive hydrocarbon catalyst streams.

• Industrial Fertilizer Production: Handling of highly corrosive and abrasive multi-directional flows of phosphoric acid slurries and reactive ammonia compounds.

• Extractive Metallurgy & Acid Leaching: Distribution manifolds for mining leaching agents, copper/gold electrowinning solutions, and aggressive wastewater treatment systems.

Comprehensive Quality Management & Testing Verification

To ensure zero leakage, maximum operational safety, and full performance compliance at critical pipeline intersections, every lined cross undergoes strict quality control sequences before shipment:

1. Electrostatic Spark Testing (Non-Destructive): 100% of the interior lined surface, including all four flange faces and the internal junction vertex, is verified using high-voltage spark testing equipment (10kV to 25kV based on lining thickness) to ensure zero pinholes, micro-voids, or structural cracks.

2. Hydrostatic Containment Testing: Pressure retention tests are conducted in strict compliance with API 598 or GB/T 13927 standards to confirm structural integrity under high mechanical loads.

3. Visual and Dimensional Verification: A comprehensive evaluation of liner face thickness, flange alignment, and total geometric compliance against customer isometric design parameters.
