PTFE & PFA Lined Instrument Tees | Corrosion Resistant Fittings

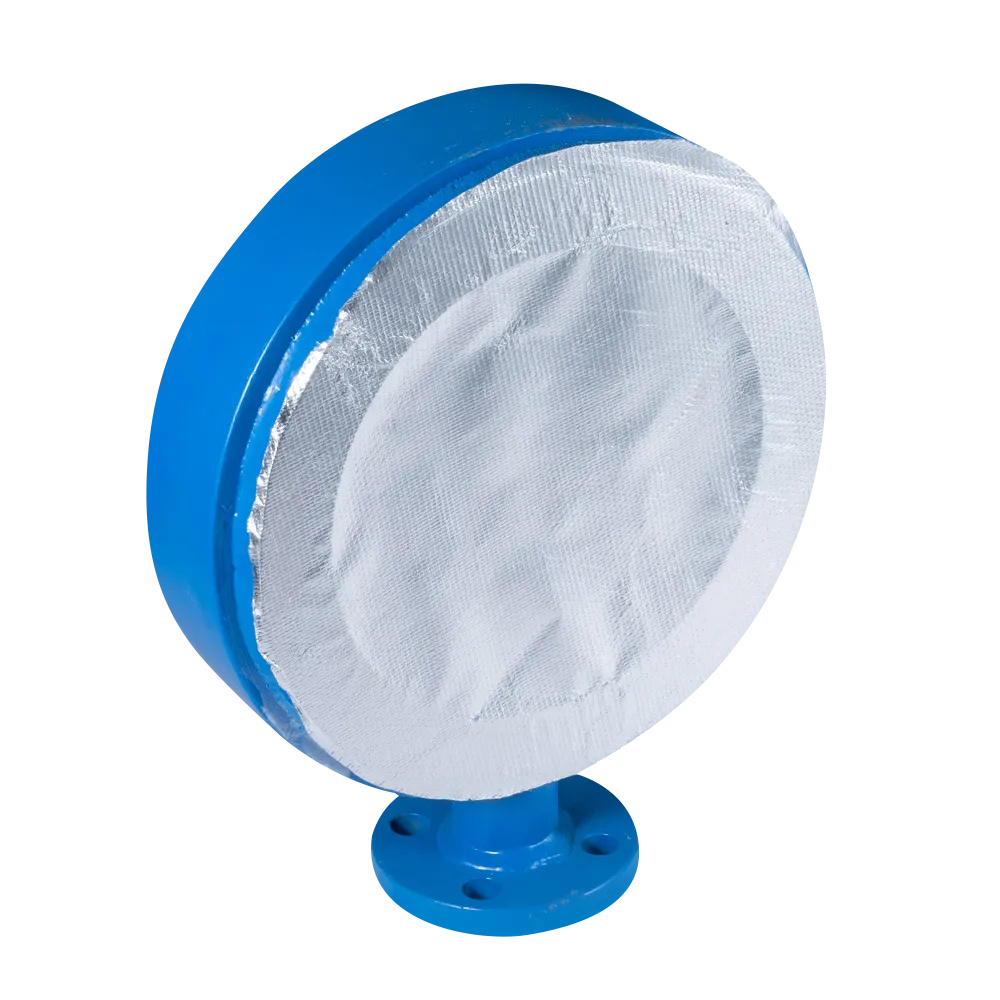

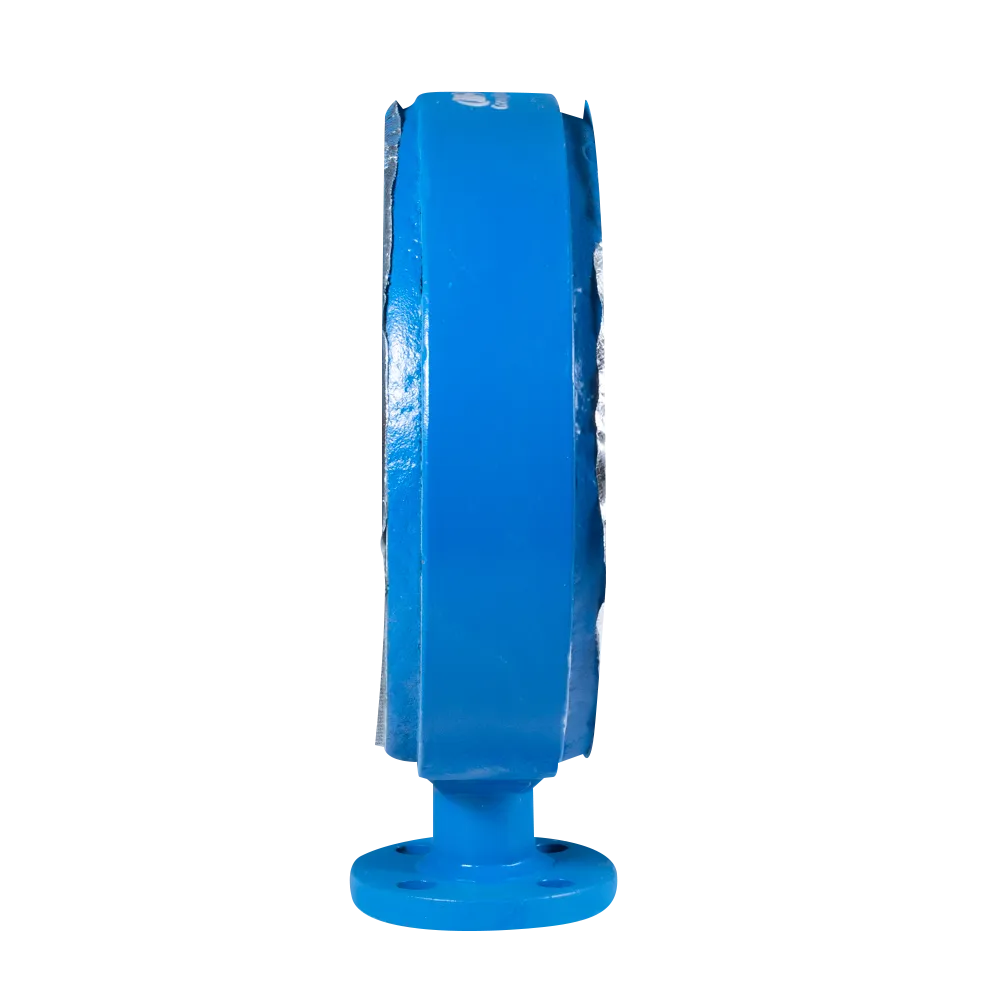

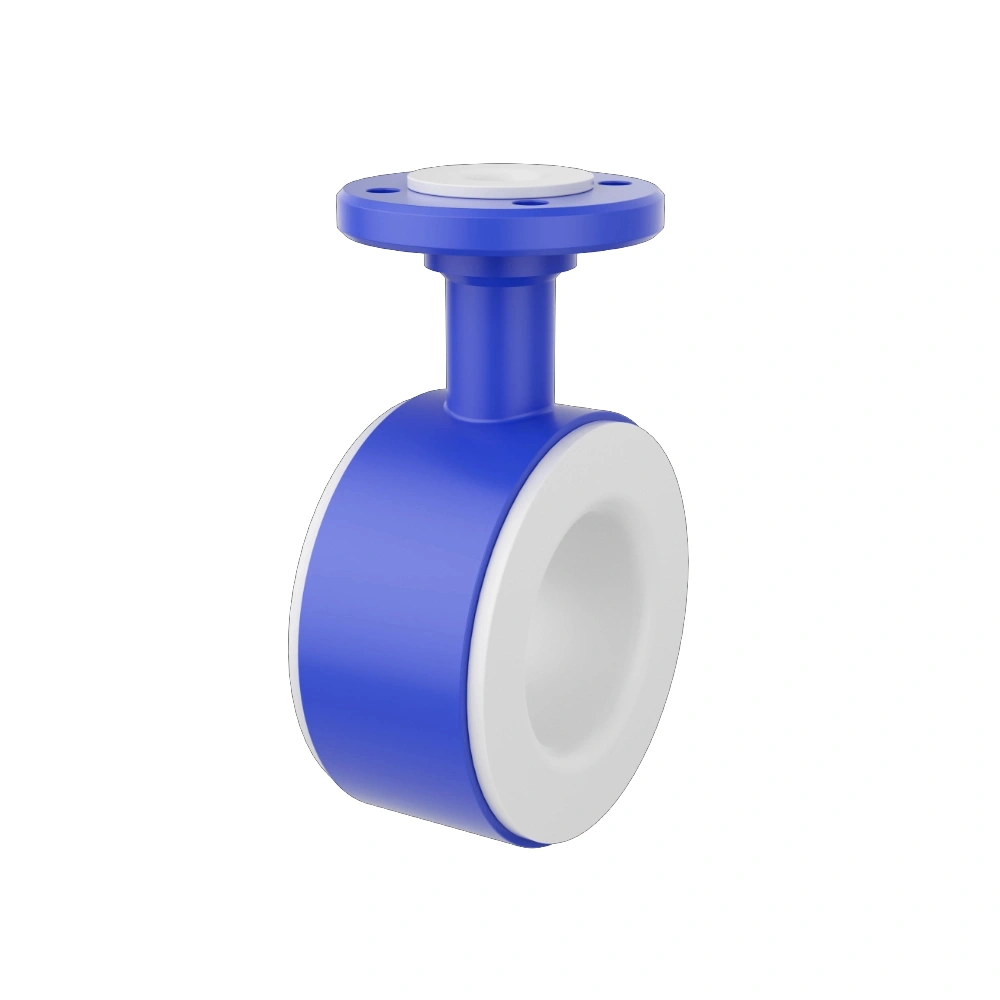

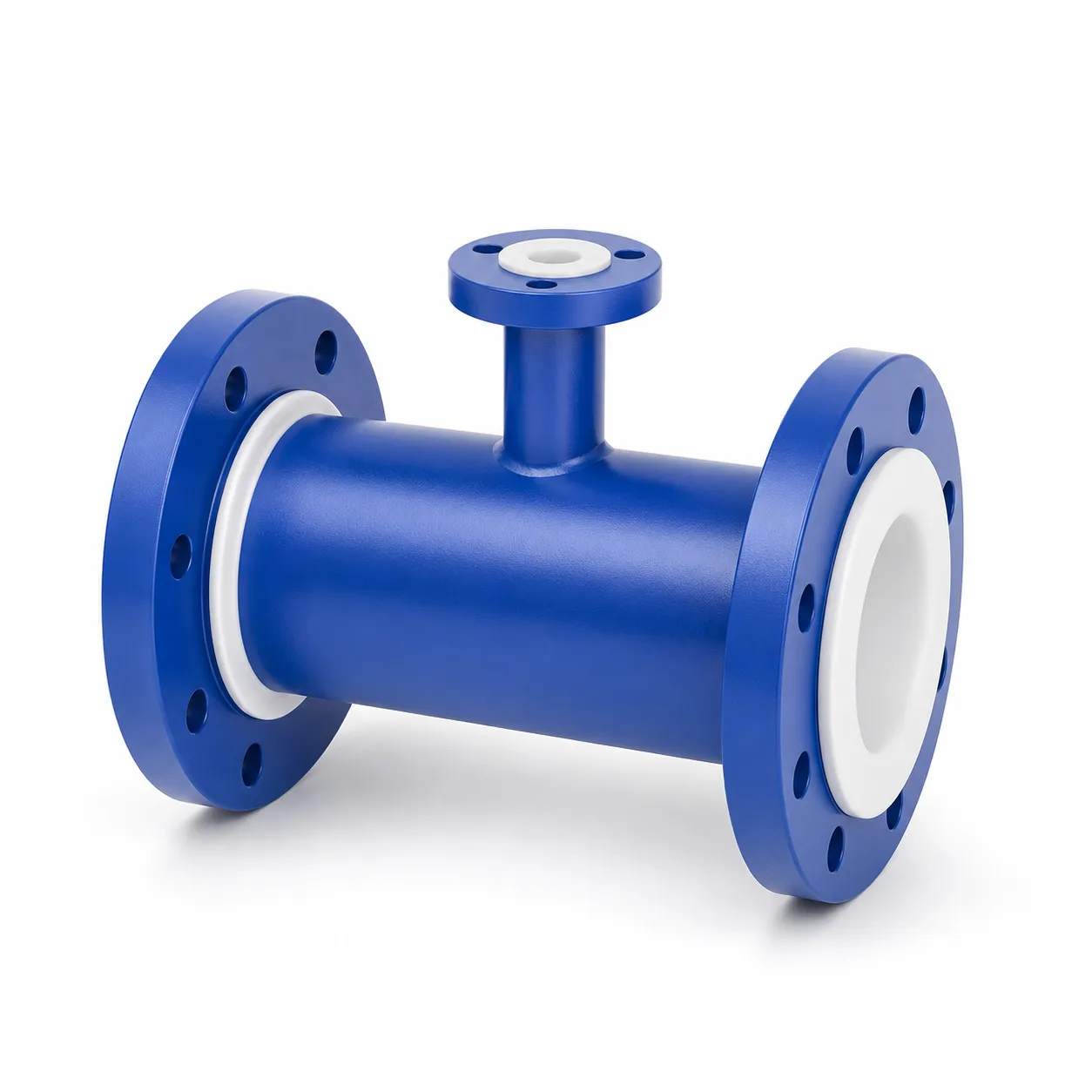

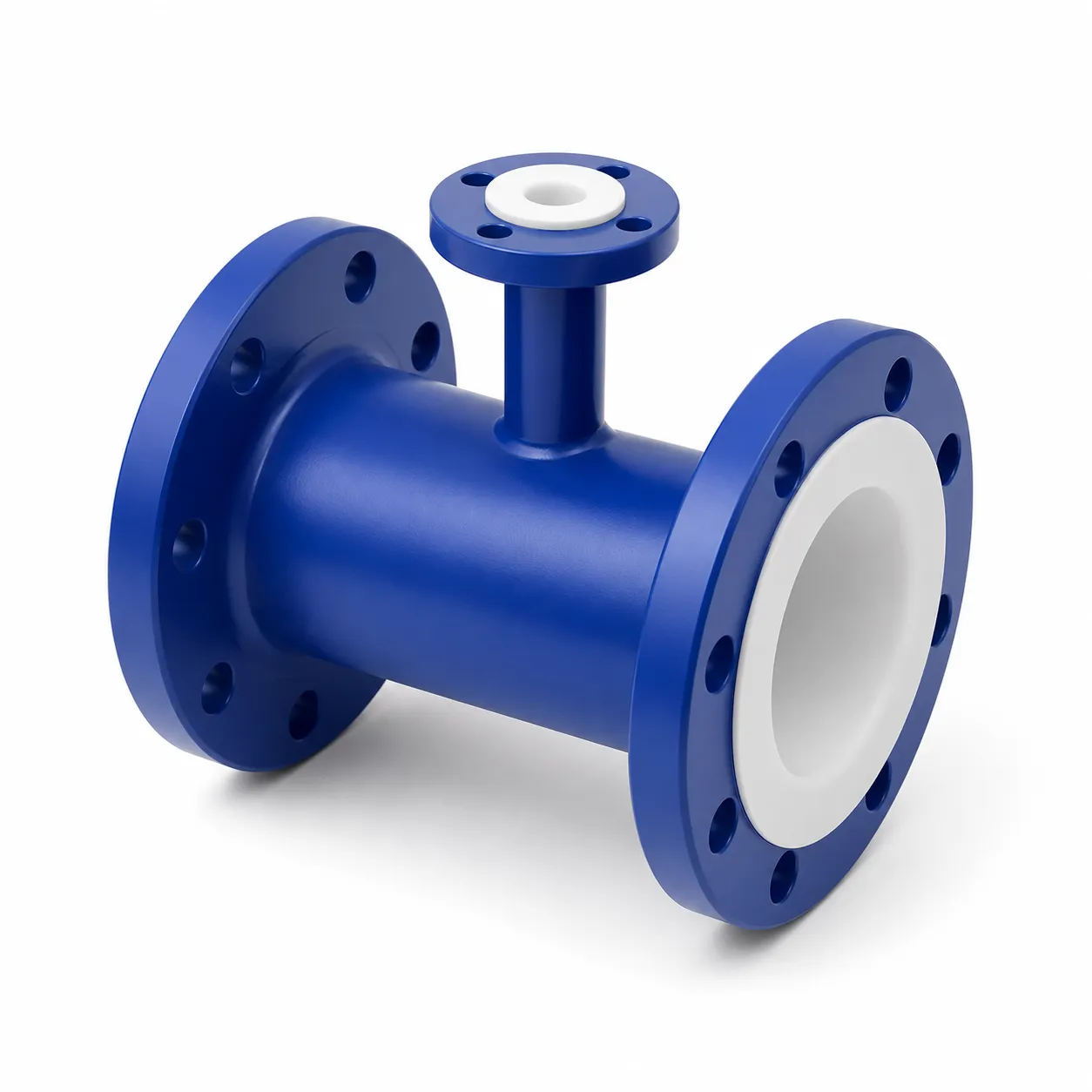

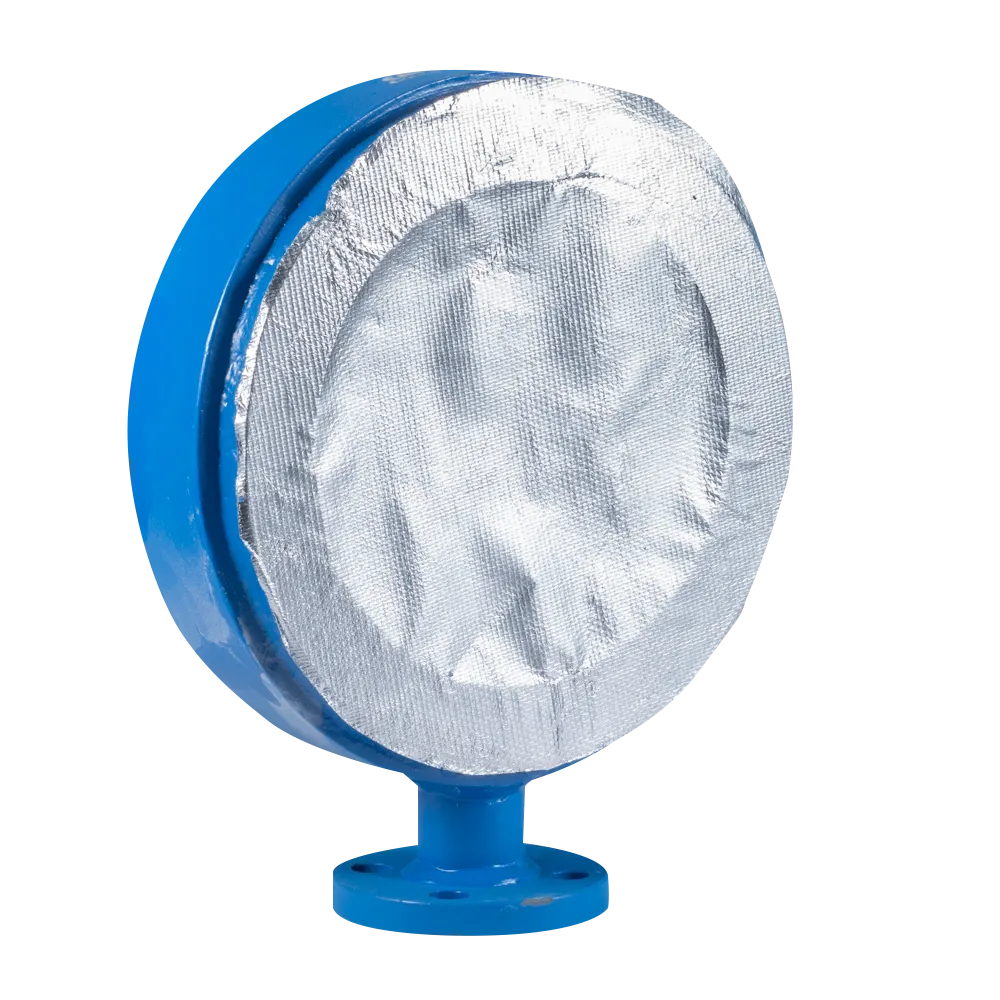

The PTFE/PFA lined instrument tee is a specialized, high-integrity piping component designed to facilitate the safe, non-destructive integration of online process monitoring equipment into highly corrosive fluid networks. Unlike standard equal tees used for fluid distribution, an instrument tee features a modified branch configuration (often featuring a reduced nominal diameter or an extra-short face-to-center profile) tailored specifically to house temperature element assemblies, thermowells, pressure transmitters, flow sensors, or pH monitoring probes.

By combining the structural load-bearing capacity of a outer steel casing with the total chemical inertness of an internal premium fluoropolymer liner, this component ensures that sensitive instrumentation can interface directly with highly aggressive process mediums. The seamless lining completely encapsulates the internal path and turned-over flange faces, preventing localized corrosive attacks and eliminating the risk of metallic ion contamination in ultra-pure fluid streams.

Material Substrates and Lining Process Control

Carbon & Stainless Steel Pressure Boundaries

The outer metallic structural shell provides the necessary mechanical strength to withstand piping stress, operational thermal expansion, and bolt tightening torques. Materials comply strictly with standard global petrochemical codes:

• ASTM A106 Grade B / ASTM A53 Grade B: Seamless carbon steel piping engineered for high-temperature and high-pressure chemical process lines.

• ASTM A234 Grade WPB: Cast or forged carbon steel body shells delivering robust structural durability for tee configurations.

• ASTM A312 Grade 304 / 316 / 316L: Austenitic stainless steel options recommended for marine processing environments, cleanrooms, or settings requiring complete resistance to external atmospheric oxidation.

Advanced Fluoropolymer Linings (PTFE & PFA)

The selection of the internal polymer liner material is critical to match the temperature thresholds and chemical dynamics of the process stream:

• Virgin PTFE (Polytetrafluoroethylene): Provides complete chemical resistance across the continuous 0–14 pH spectrum. Its naturally low friction coefficient prevents chemical scaling, product accretion, or media buildup around the extended monitoring probe elements.

• Melt-Processable PFA (Perfluoroalkoxy Alkane): Selected for complex internal geometries and systems operating under severe thermal-vacuum cycling. PFA transfer molding guarantees absolute lining thickness uniformity around the critical T-junction internal radiuses and intersecting flange components.

Manufacturing Methodologies for T-Intersections

• High-Density Molding Processing: Because instrument tees feature a perpendicular intersection with an often reduced branch size, specialized automated high-pressure transfer molding or isostatic molding techniques are applied. This methodology forces the fluoropolymer matrix evenly into the steel shell, ensuring zero micro-porosity, uniform wall thickness, and zero stress concentrations at the diameter transitions.

• High Permeation Resistance: The ultra-dense molecular configuration of the lining limits free interstitial space, preventing volatile chemical vapors and low-molecular-weight acid gases from diffusing through the lining to attack the outer steel shell.

• Full Vacuum Stability: The internal lining is mechanically anchored into precisely machined internal locking grooves or stabilized via external casing vent holes. This structural design ensures the lined instrument tee maintains full vacuum stability, preventing liner collapse, buckling, or separation under negative pressure shifts at elevated temperatures.

Technical Parameters & Standards Compliance

To ensure seamless integration into international engineering procurement frameworks, all manufacturing and testing workflows conform to global compliance metrics:

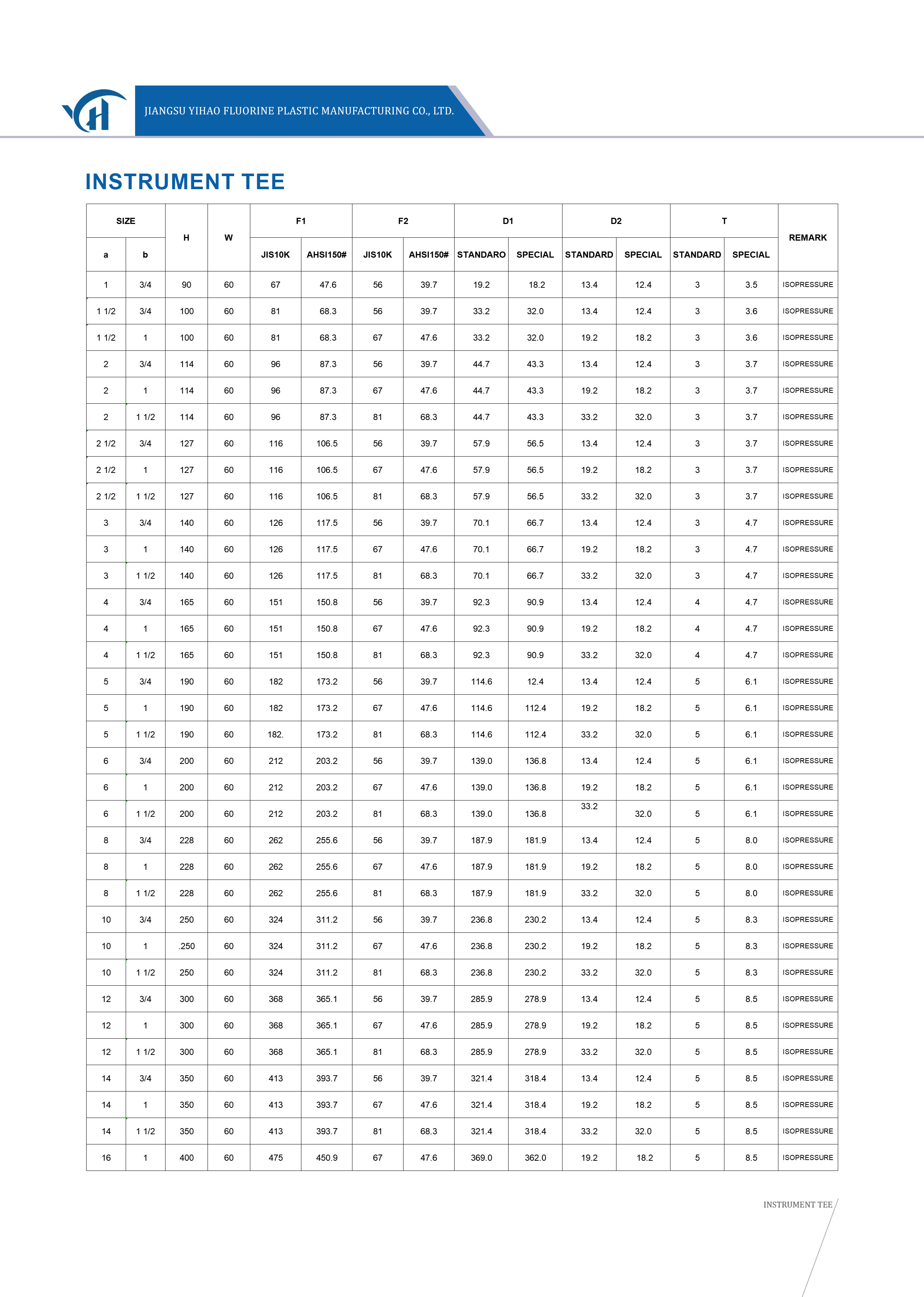

System Performance Specifications

• Nominal Pipe Size Range (Run): DN15 to DN1200 (1/2" up to 48" nominal path).

• Instrument Branch Size Range: Fully customizable based on standard sensor connections (commonly DN15, DN20, DN25, or DN50).

• Pressure Class Compatibility: PN10, PN16, and ASME Class 150 (150LB).

• Face-to-Face Dimensions: Conforming to standard international configurations, or custom manufactured as per specific project Material Take-Off (MTO) customer isometric drawings.

Applicable Engineering Standards

• Design & Fitting Specifications: ASTM F1545 (Standard Specification for Plastic-Lined Ferrous Metal Pipe and Fittings).

• Flange Attachment & Dimension Standards: ASME B16.5, EN1092-1, DIN 2501, HG/T 20592, JIS 10K.

• Face-to-Face Dimensions: Conforming to ASME B16.10, GB/T 12221, or specified customer layout configurations.

Primary Cross-Industry Applications

The safe structural containment and absolute chemical isolation of these PTFE/PFA lined instrument tees make them critical components across multiple process monitoring fields:

• Chemical Process Industries (CPI): Positioned at sensor junctions to continuously monitor the temperature, pressure, or concentration of bulk mineral acids, including concentrated sulfuric, hydrofluoric, and nitric acids.

• Chlor-Alkali Infrastructure: Deployed inside instrumentation loops to track the process conditions of hot wet chlorine gas, high-concentration caustic soda, and aggressive brine filtration paths.

• Pharmaceutical and Biochemical Synthesis: High-purity process tracking points requiring zero dead-leg zones. The ultra-smooth fluoropolymer surfaces support reliable Clean-in-Place (CIP) flushing profiles and prevent trace metallic contamination.

• Semiconductor & Wafer Processing: Critical path monitoring for ultra-pure electronic-grade chemical etching solutions, photoresist solvent mixtures, and highly concentrated acid recovery networks.

• Petroleum Refining & Petrochemicals: Positioned within hydrocarbon streams containing hydrofluoric acid alkylation units, sour water treatment facilities, and process lines carrying toxic or volatile catalyst components.

• Industrial Fertilizer Production: Real-time monitoring of highly corrosive and abrasive flows of phosphoric acid slurries and reactive volatile ammonia compounds.

Comprehensive Quality Management & Testing Verification

To ensure zero-leak operations, absolute instrument branch sealing, and long-term functional compliance in hazardous line configurations, every lined instrument tee undergoes strict quality control validation before shipment:

1. Electrostatic Spark Testing (Non-Destructive): 100% of the internal lined surfaces, including the complex branch intersection vertex and all three flange faces, are verified using high-voltage spark testing equipment (10kV to 25kV based on lining thickness) to ensure zero pinholes, micro-voids, or structural defects.

2. Hydrostatic Containment Testing: Pressure retention testing is executed in strict compliance with API 598, ASTM F1545, or GB/T 13927 standards to guarantee total seal integrity under continuous service loads.

3. Visual and Alignment Audit: A precise inspection of the branch alignment perpendicularity, flange face parallelism, concentricity, and total dimensional conformity relative to the project MTO configuration data.
