PTFE & PFA Lined Reducing Tees | Fluoropolymer Lined Branch Fittings

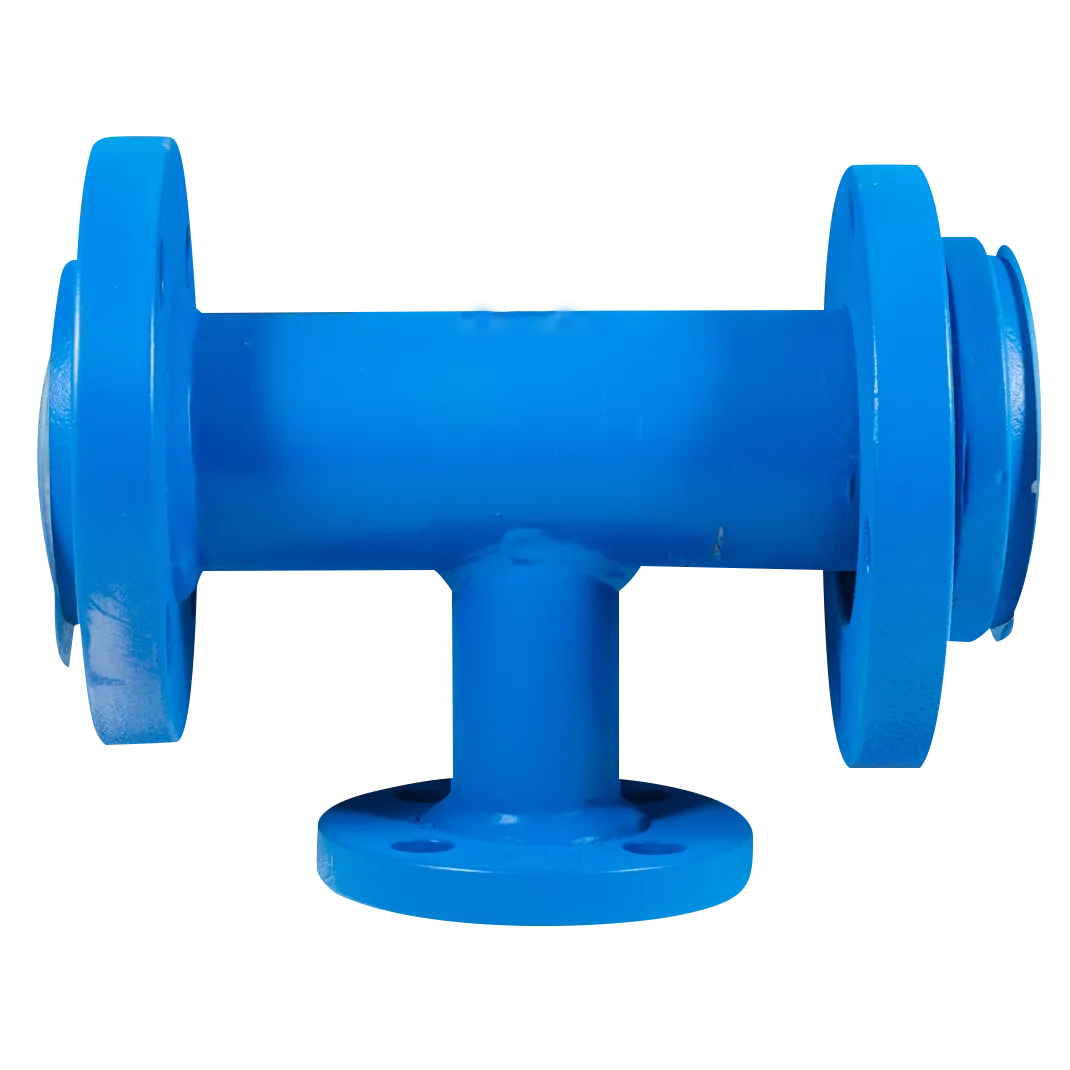

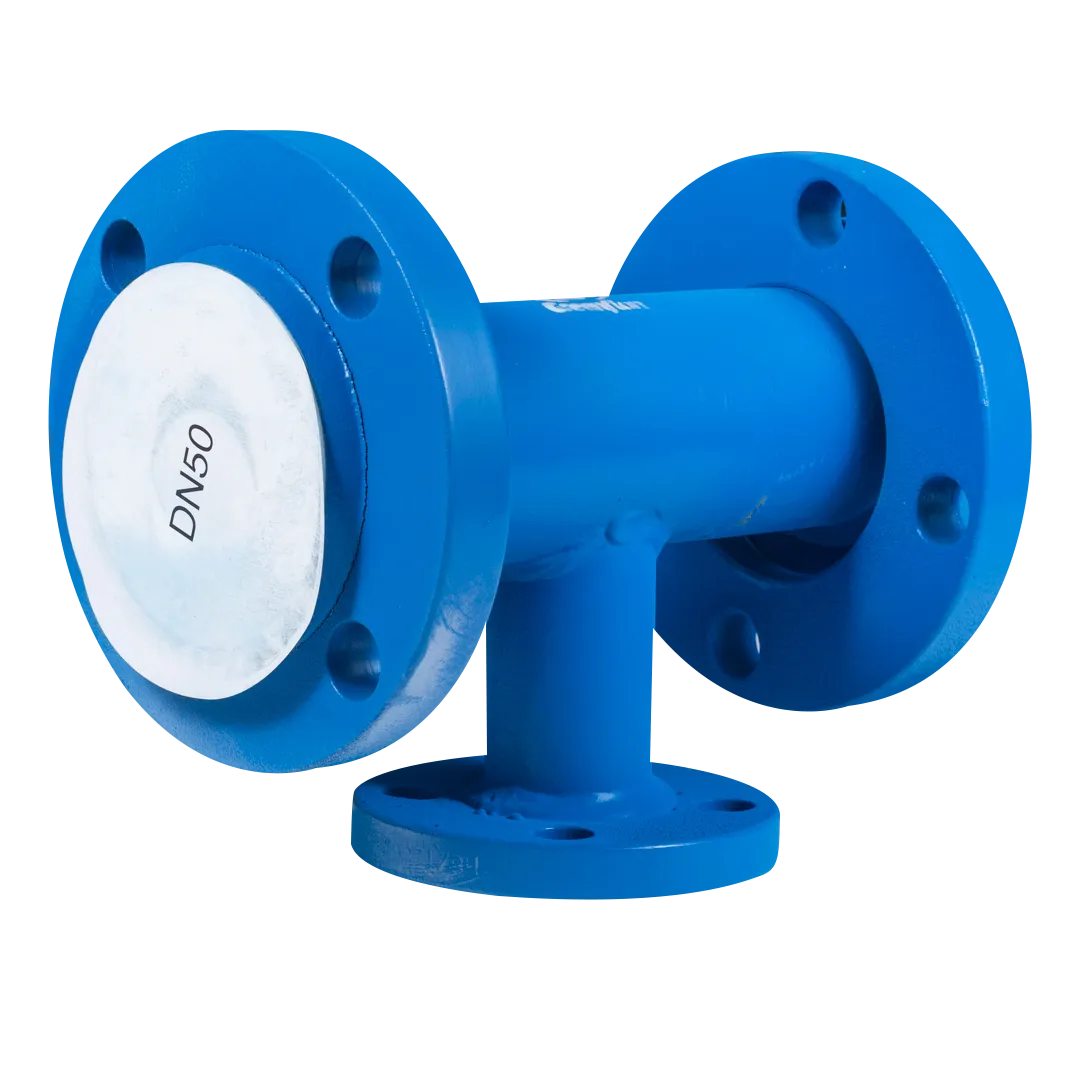

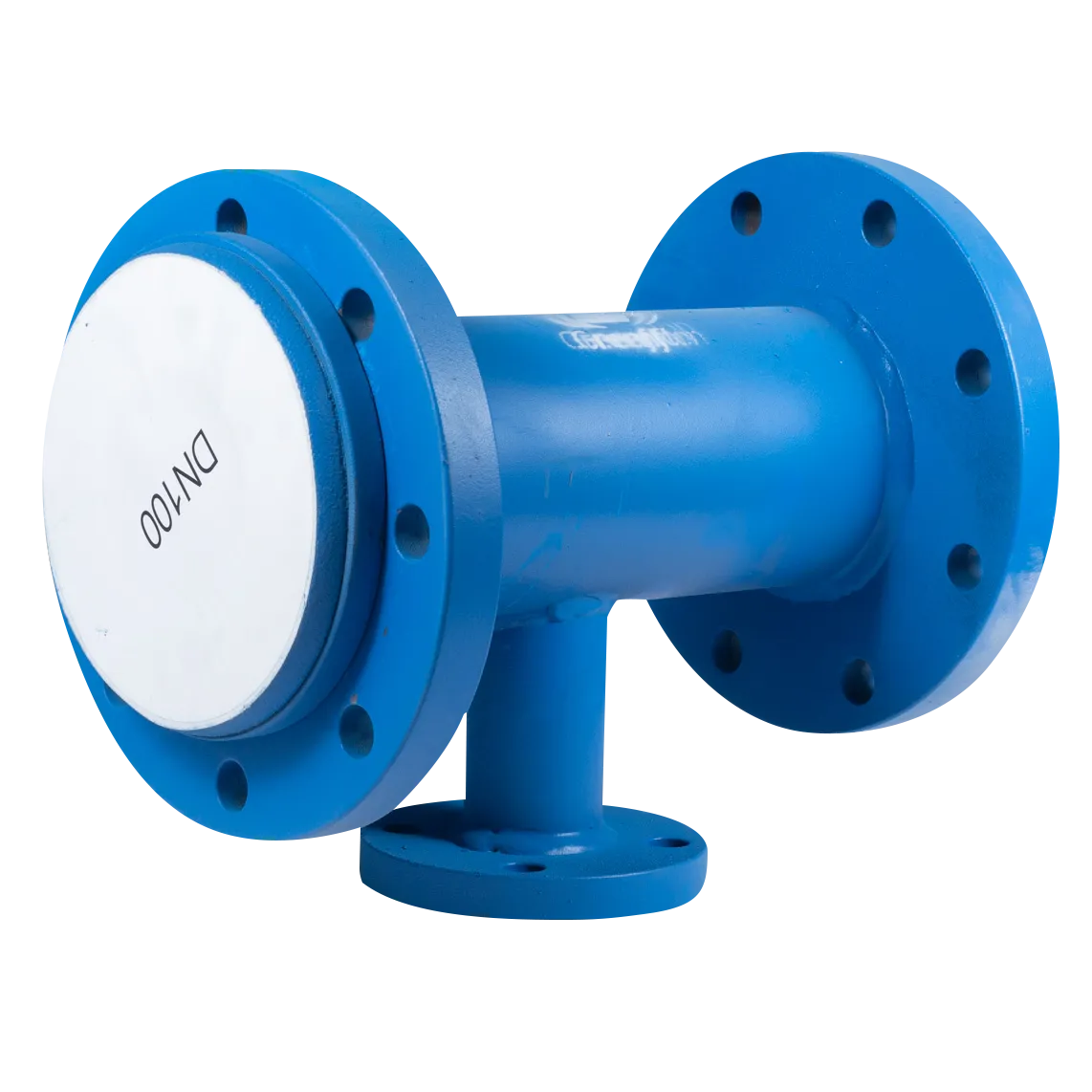

The PTFE/PFA lined reducing tee is a heavy-duty, three-way piping component engineered to facilitate corrosion-resistant fluid branching within industrial networks where the intersecting branch pipeline has a smaller nominal diameter than the main run. Positioned at critical junctions, this fitting allows for the controlled diversion or localized injection of highly aggressive media without requiring standalone, separate reducers adjacent to the intersection.

The reducing T-geometry balances fluid dynamics by managing the transition between higher volumetric main flows and downsized branch streams. Backed by a structural steel body and fully isolated by a high-density fluoropolymer liner, this component minimizes localized fluid turbulence, mitigates cavitation risks at the junction vertex, and maintains uniform pressure-retaining capabilities across all three flanged faces.

Material Substrates and Lining Process Control

Carbon & Stainless Steel Outer Housing

The outer metallic structural shell handles the system's mechanical stresses, external piping loads, and internal working pressures. The fabrication substrates comply with international chemical refinery specifications:

• ASTM A234 Grade WPB: Heavy-wall carbon steel casting or forged configurations, providing maximum mechanical strength and dimensional stability under continuous thermal loading.

• ASTM A106 Grade B / ASTM A53 Grade B: High-grade seamless carbon steel pipes engineered for high-pressure hazardous fluid transmission loops.

• ASTM A312 Grade 304 / 316 / 316L: Austenitic stainless steel pressure boundaries selected for high-purity cleanrooms, pharmaceutical synthesis, or systems subjected to aggressive ambient marine corruption.

Advanced Fluoropolymer Linings (PTFE & PFA)

The internal polymer barrier layer completely insulates the metallic shell from corrosive medium contact, selected based on the processing parameters:

• Virgin PTFE (Polytetrafluoroethylene): Provides total chemical inertness across the full 0–14 pH spectrum. Its low-friction surface minimizes material accretion and scaling along the complex 90-degree internal intersection.

• Melt-Processable PFA (Perfluoroalkoxy Alkane): Recommended for severe operations experiencing high-temperature thermal cycling paired with vacuum conditions. The PFA melt-molding process ensures superior adhesion and thickness homogeneity at the critical internal junction radiuses.

Manufacturing Methodologies for Asymmetrical T-Intersections

• High-Density Molding Processing: Because reducing tees feature an asymmetrical interior path where the branch narrows, specialized automated high-pressure transfer molding or isostatic molding techniques are used. This forces the fluoropolymer matrix uniformly against the interior steel walls, ensuring zero micro-porosity and an uncompromised liner thickness.

• High Permeation Resistance: The ultra-dense molecular structure of the lining minimizes interstitial voids, preventing volatile chemical vapors and low-molecular-weight gases from diffusing through the liner to attack the outer steel shell.

• Vacuum Integrity Protection: The lining is mechanically anchored into precisely machined internal locking grooves or stabilized via external casing vent holes. This design keeps the lining stable under negative pressure shifts, preventing liner collapse or buckling at elevated temperatures.

Technical Parameters & Standards Compliance

To ensure complete integration into global automated chemical manifolds and refinery design frameworks, all manufacturing and testing metrics conform to international standards:

System Performance Specifications

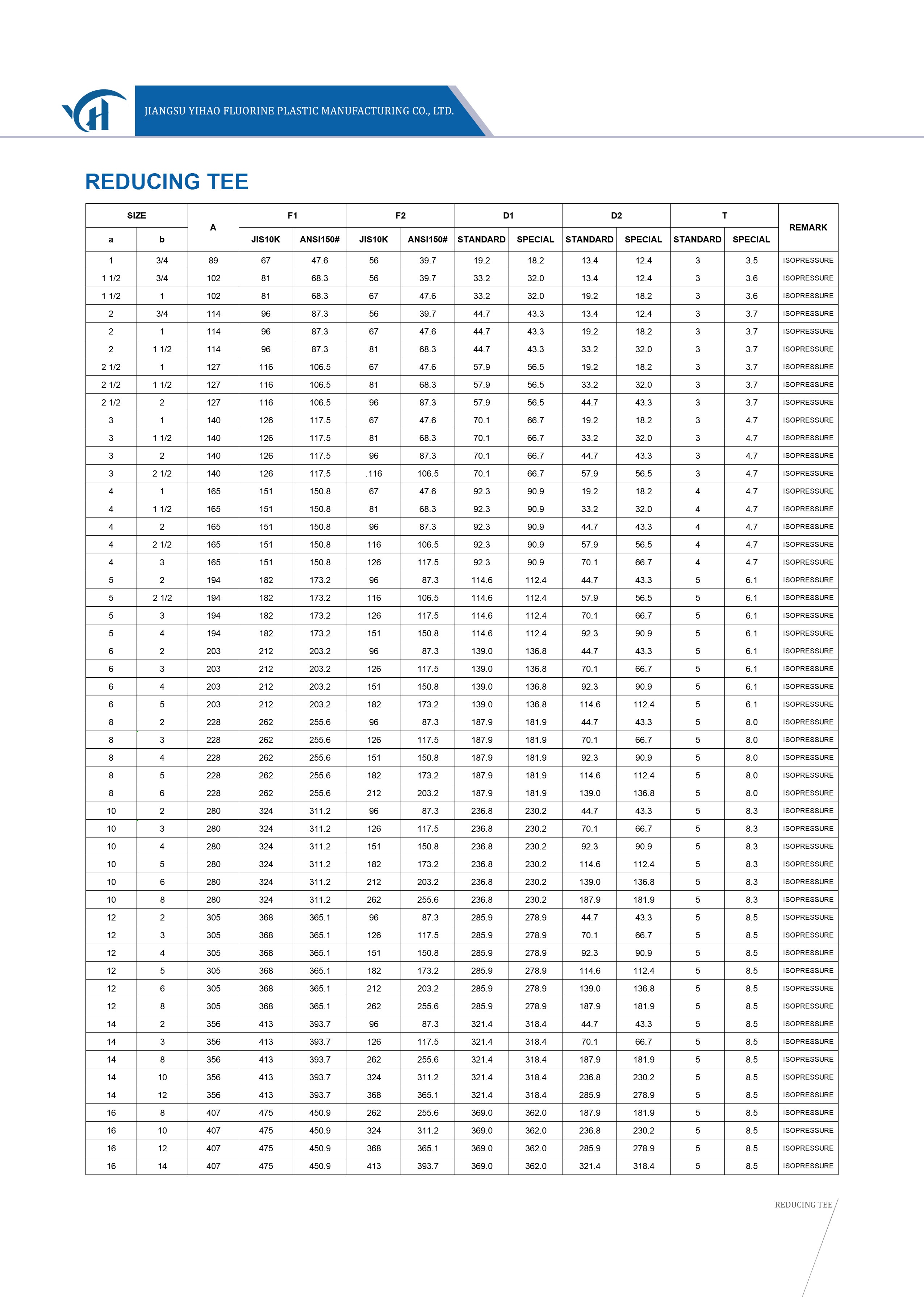

• Nominal Size Range (Main Run): DN15 to DN1200 (1/2" up to 48" nominal path).

• Nominal Size Range (Reduced Branch): Fully customizable based on system parameters (e.g., matching low-flow lines from DN15 upwards).

• Pressure Class Compatibility: PN10, PN16, and ASME Class 150 (150LB).

• Face-to-Face Dimensions: Conforming to standard international configurations, or custom manufactured as per specific project Material Take-Off (MTO) customer isometric blueprints.

Applicable Engineering Standards

• Design & Fitting Specifications: ASTM F1545 (Standard Specification for Plastic-Lined Ferrous Metal Pipe and Fittings).

• Flange Attachment & Dimension Standards: ASME B16.5, EN1092-1, DIN 2501, HG/T 20592, JIS 10K.

• Face-to-Face Core Dimensions: Conforming to ASME B16.10, GB/T 12221, or specified customer layout configurations.

Primary Cross-Industry Applications

The reliable branch isolation and absolute chemical containment of these PTFE/PFA lined reducing tees make them critical components across multiple process distribution fields:

• Chemical Process Industries (CPI): Branching distribution lines carrying concentrated mineral acids, such as sulfuric, hydrochloric, hydrofluoric, and nitric acid, from high-volume bulk storage to downsized reactor feeds.

• Chlor-Alkali Infrastructure: Positioned within manifold networks to route wet chlorine gas, high-concentration caustic soda, and aggressive brine filtration streams.

• Pharmaceutical and Biochemical Synthesis: High-purity down-sampling and dosing loops that require clean fluid transitions, full compatibility with Clean-in-Place (CIP) flushing, and zero metallic ion contamination.

• Semiconductor & Wafer Processing: Critical chemical distribution networks for ultra-pure electronic-grade chemical etching solutions, high-purity solvents, and acid-recovery loops.

• Petroleum Refining & Petrochemicals: Deployed within hydrocarbon streams containing hydrofluoric acid alkylation units, sour water strippers, and chemical dosing manifolds.

• Industrial Fertilizer Production: Handling branching fluid paths of highly abrasive and corrosive phosphoric acid slurries and ammonia compounds.

Comprehensive Quality Management & Testing Verification

To ensure zero-leak operations, absolute branch transition sealing, and long-term compliance in hazardous lines, every lined reducing tee undergoes strict quality control validation before shipment:

1. Electrostatic Spark Testing (Non-Destructive): 100% of the internal lined surfaces, including the high-stress 90-degree internal intersection and all three turned-over flange faces, are verified using high-voltage spark testing equipment (10kV to 25kV based on lining thickness) to ensure zero pinholes, micro-voids, or structural defects.

2. Hydrostatic Pressure Testing: Pressure retention testing is executed in strict compliance with API 598, ASTM F1545, or GB/T 13927 standards to guarantee total seal integrity under continuous service loads.

3. Visual and Alignment Audit: A precise inspection of the branch perpendicularity, flange face parallelism, concentricity, and total dimensional conformity relative to the project MTO configuration data.
