Custom PTFE Bearings & Slide Plates | Low-Friction Fluoropolymer Bushings

Engineered for high-wear, non-lubricating, and corrosive environments, our custom PTFE bearings and slide components provide an ultra-low friction solution for industrial machinery. Machined from premium virgin or filled PTFE compounds (including carbon, glass fiber, bronze, or molybdenum disulfide), these components eliminate stick-slip motion, prevent metal-to-metal galling, and eliminate the need for external grease or oil lubrication.

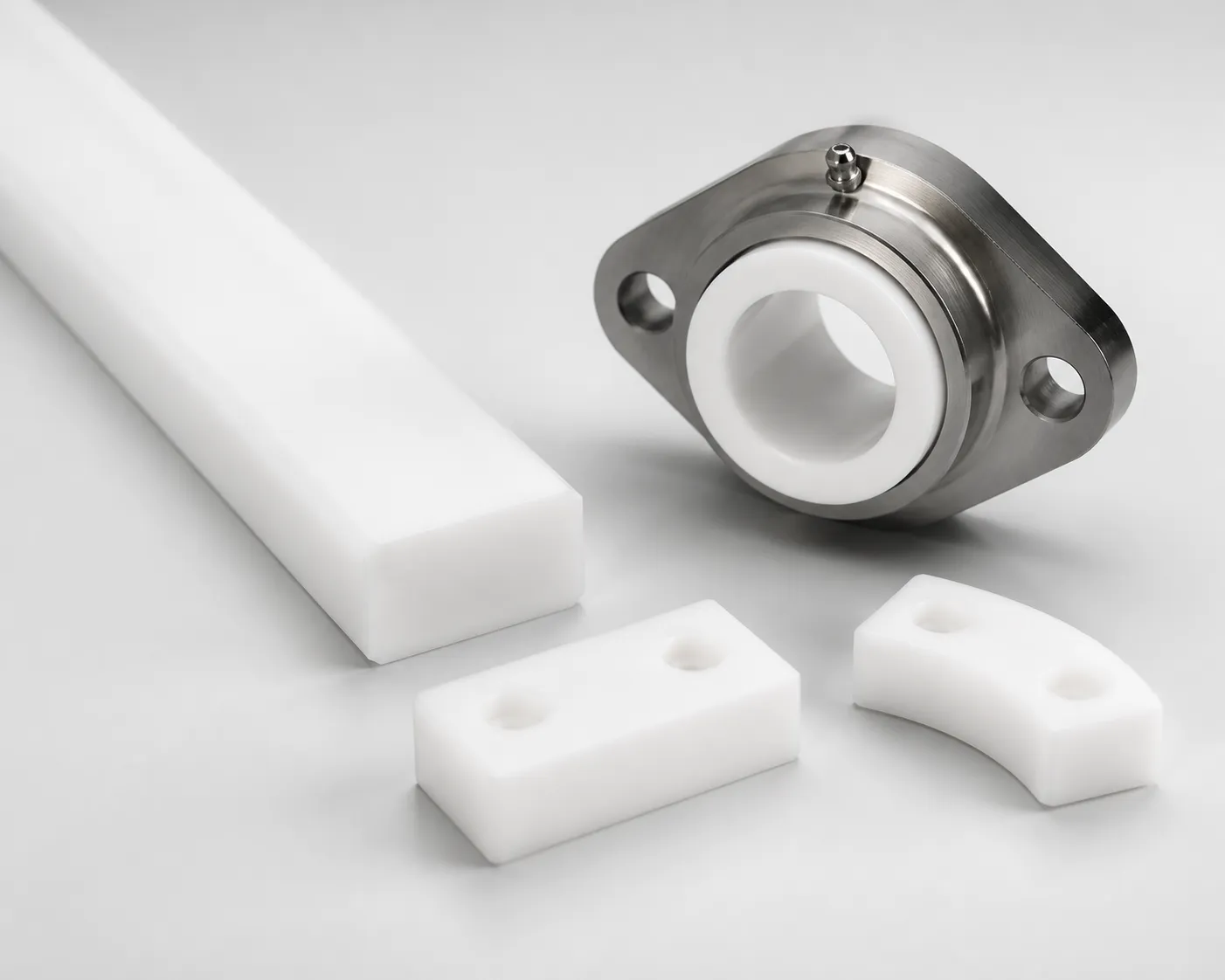

Our product lineup includes cylindrical sleeve bushings, flanged sleeve bearings, thrust washers, guide rings, and heavy-duty linear slide plates tailored for precise mechanical motion control.

Key Performance Benefits

• Self-Lubricating Operation: Extremely low coefficient of friction enables smooth, dry-sliding performance without oil or grease contamination risks.

• Exceptional Chemical Resistance: Impervious to virtually all industrial acids, alkalis, solvents, and aggressive process fluids.

• Broad Operating Thermal Window: Maintains dimensional integrity and mechanical stability across temperatures from -200°C (-328°F) to +260°C (+500°F).

• Zero Stick-Slip & Low Wear: Delivers consistent breakaway torque and smooth linear motion in slow-speed, high-load sliding applications.

• Non-Conductive & Dielectric: Excellent electrical insulation properties safeguard sensitive automated equipment and electronic assemblies.

Technical Specifications

• Material Options: 100% Virgin PTFE, Glass-Filled PTFE, Carbon-Filled PTFE, Bronze-Filled PTFE

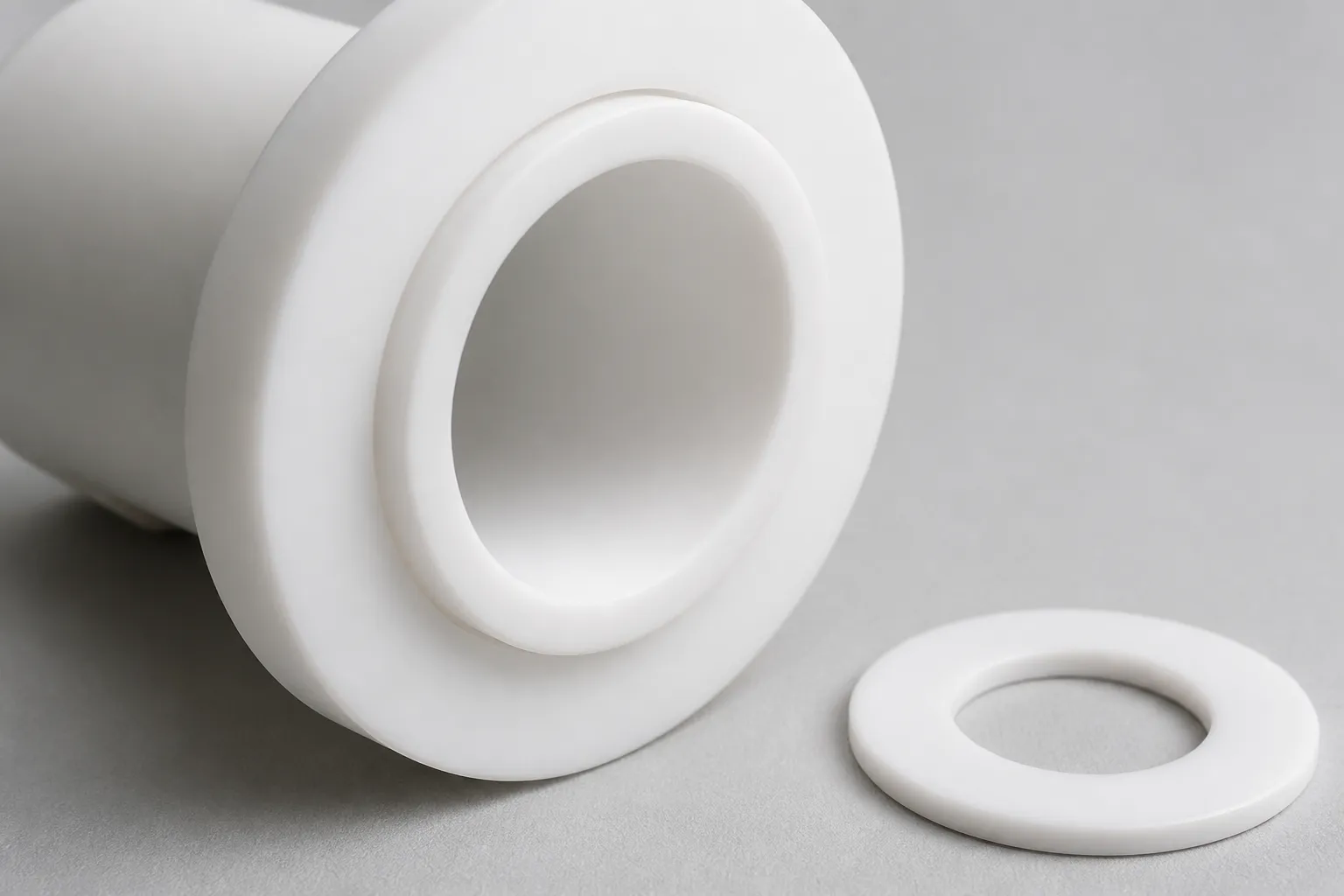

• Component Types: Flanged Bushings, Straight Sleeve Bearings, Thrust Washers, Linear Slide Plates, Curved Guide Strips

• Coefficient of Friction: 0.05 to 0.10 (Dynamic dry sliding)

• Temperature Range: -200°C to +260°C (-328°F to +500°F)

• Machining Tolerance: CNC precision turned/milled within ±0.02 mm

• Regulatory Compliance: FDA 21 CFR 177.1550, RoHS, REACH

Primary Applications

• Chemical & Food Processing Machinery: Maintenance-free conveyor bearings, mixer shaft bushings, and pump wear rings where lubricants are prohibited.

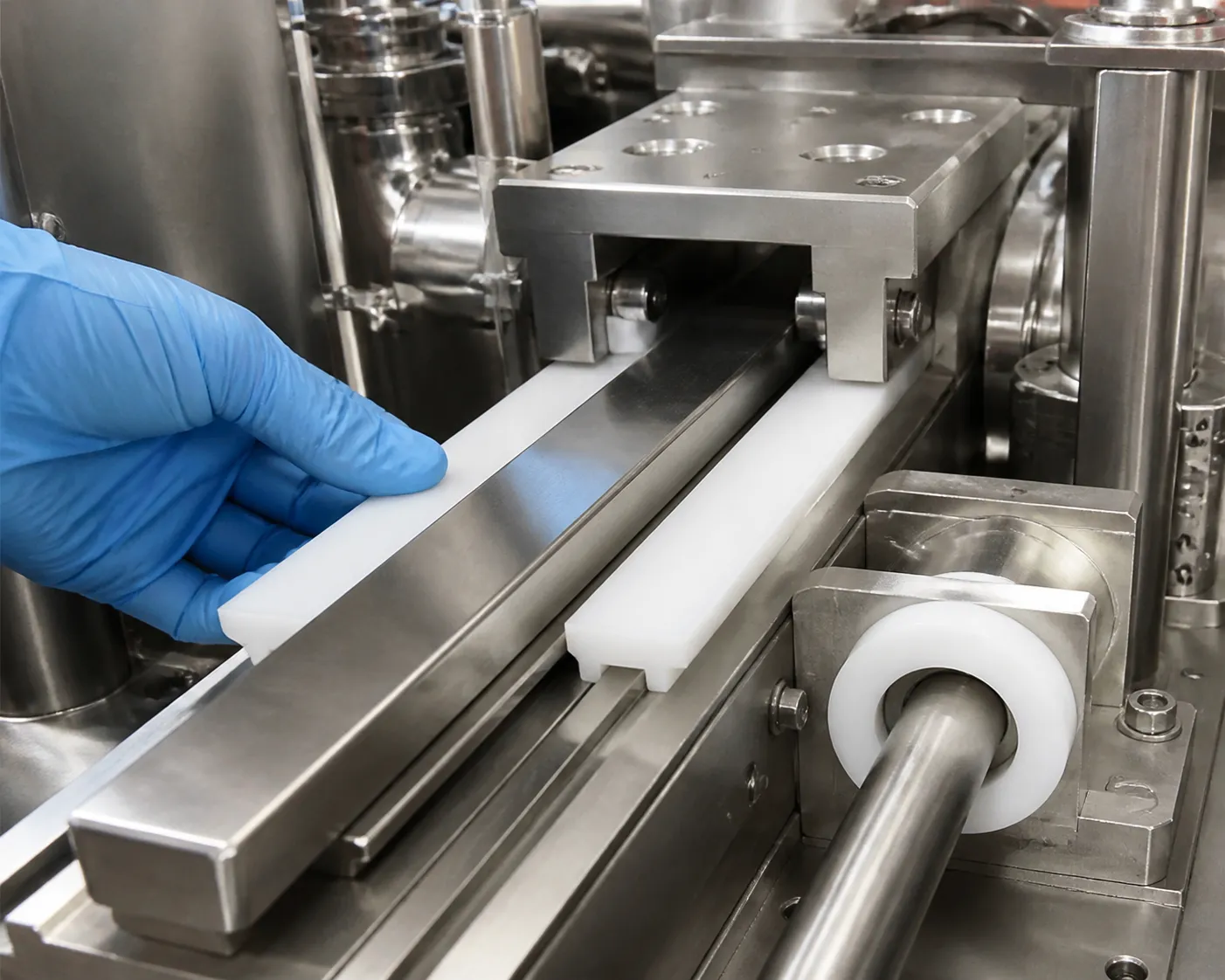

• Automated Packaging Equipment: Linear slide guides, bottle handling star-wheels, and wear strips for high-speed filling lines.

• Heavy Industrial & Construction Equipment: Structural expansion slide plates, bridge bearing pads, and hydraulic cylinder guide rings.

• Medical & Laboratory Devices: Cleanroom linear motion tracks, sampling arm bushings, and sterilization-compatible slide bearings.

Quality Assurance & Precision Inspection

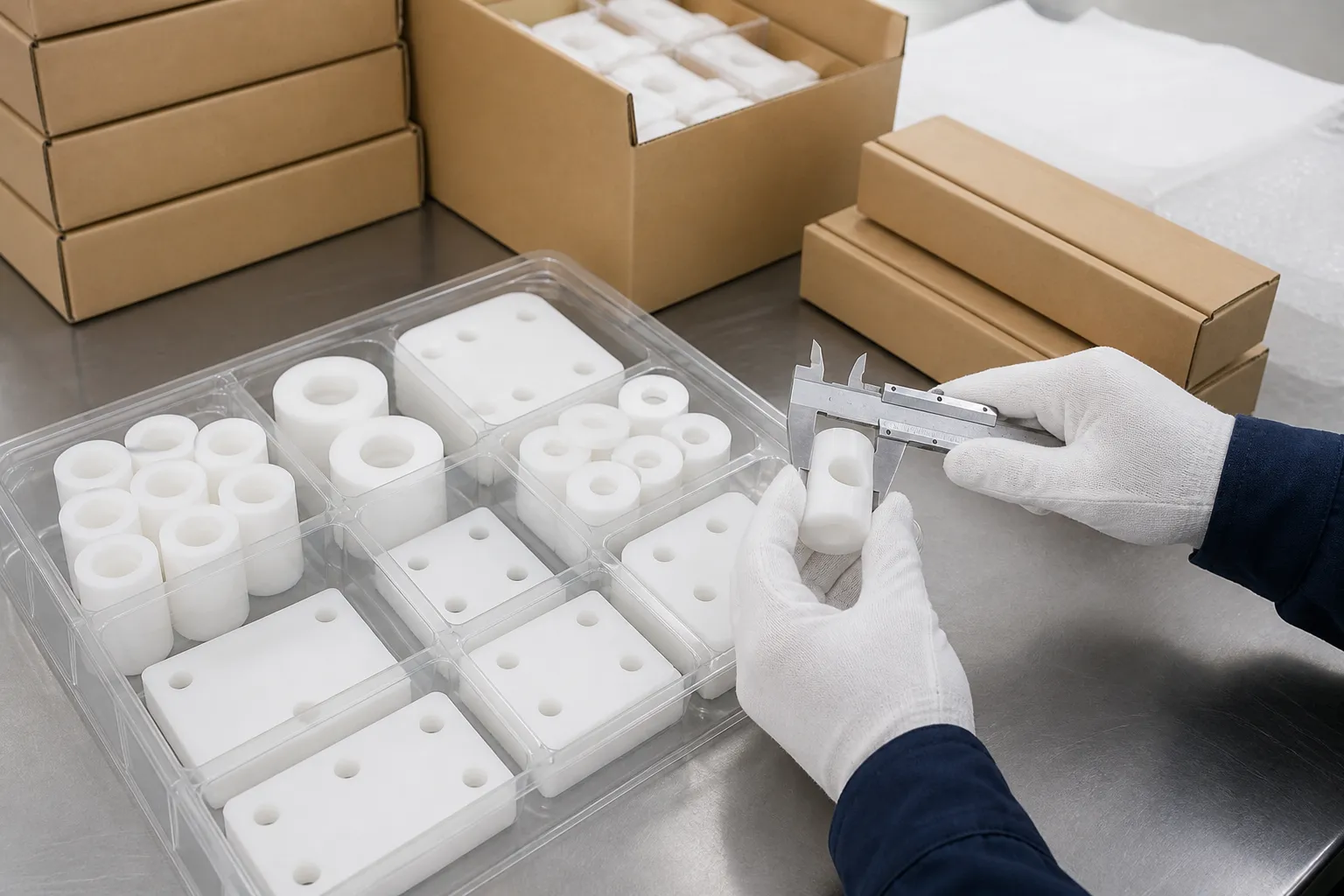

• Dimensional Caliper & Vernier Verification: 100% critical-dimension checks on inner diameters, outer wall thicknesses, flange widths, and hole pitch alignment.

• Surface Finish & Runout Control: CNC machining ensures tight concentricity and smooth bearing contact surfaces to optimize service life.

• Compartmentalized Clean Packaging: Machined components are organized in anti-scratch tray inserts, bagged, and boxed in rigid cartons to protect fine tolerances during shipping.

Contact our engineering sales team today to submit custom CAD drawings, request sample prototypes, or obtain wholesale volume pricing.
