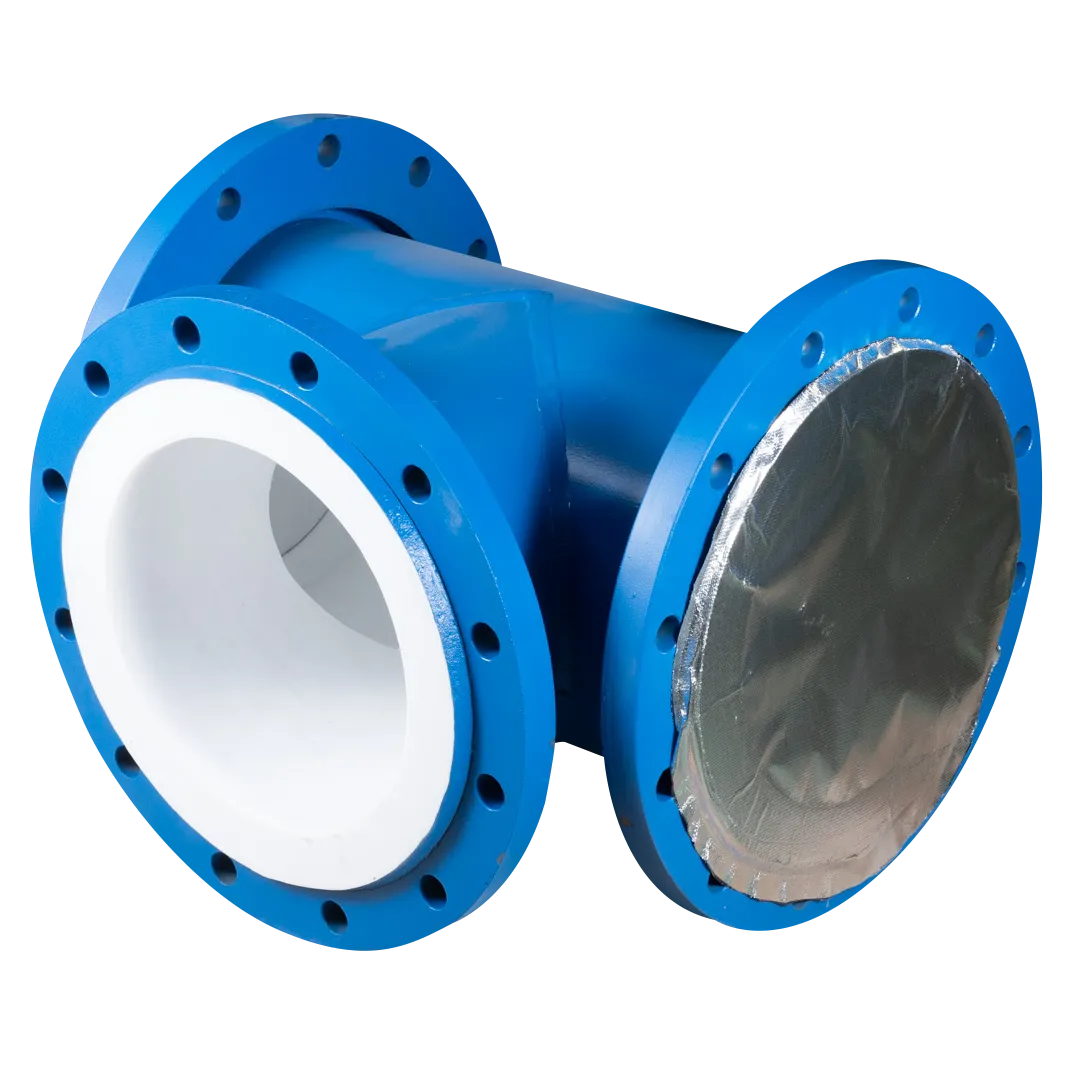

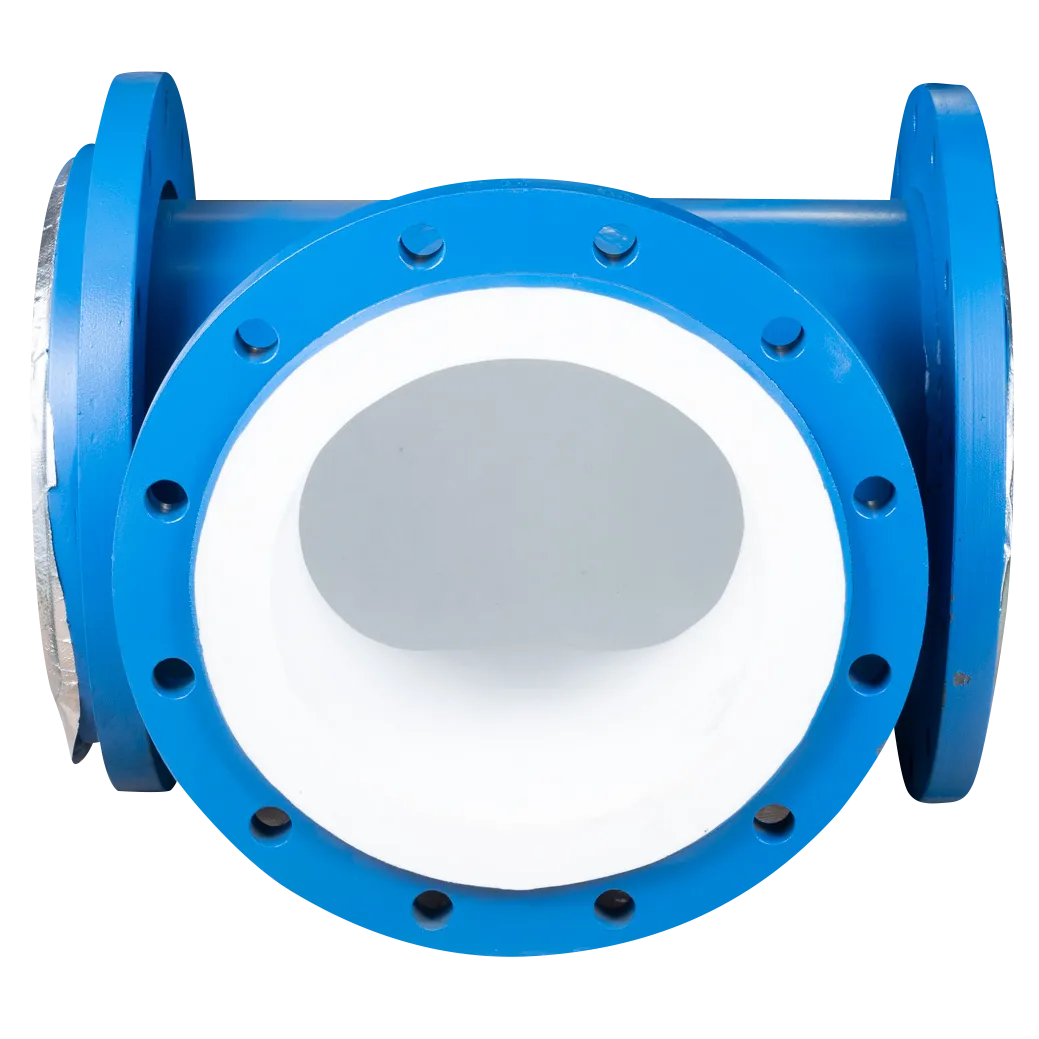

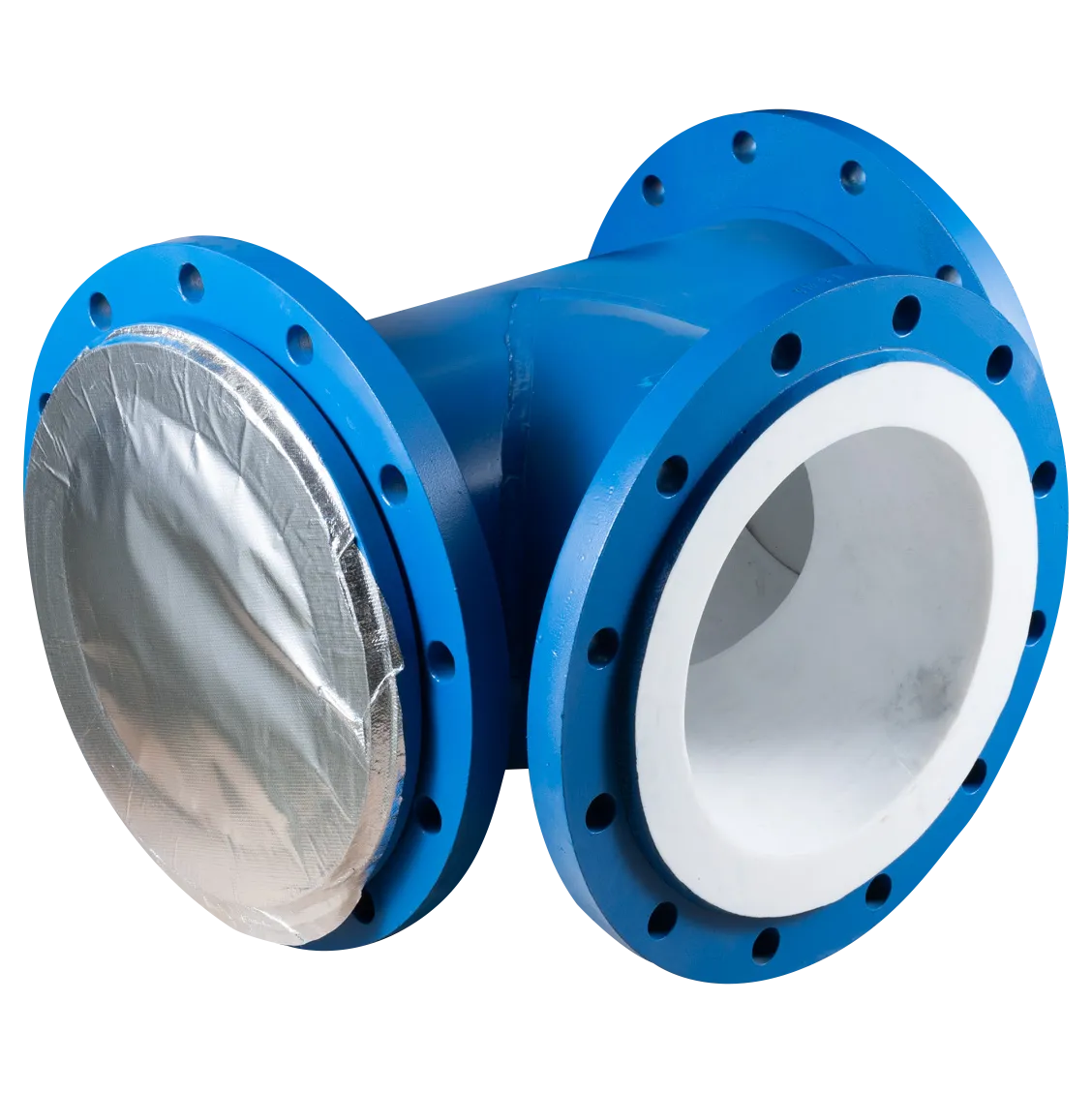

PTFE & PFA Lined Unequal Tees | Heavy-Duty Lined Branch Fittings

PTFE/PFA lined reducing tees are heavy-duty three-way flanged fittings designed to safely branch corrosive fluids, where the lateral branch line is smaller in nominal diameter than the main straight-through line. Installed at key nodes of hazardous process pipelines, this fitting enables localized flow diversion or reduced chemical dosing to be directly drawn from large-volume main pipelines without requiring an independent, separate reducer.

By combining the structural pressure-bearing framework of a metal body with the ultimate chemical inertness of a high-performance fluoropolymer lining, the reducing tee achieves optimal balance in handling internal fluid dynamics. This asymmetrical design regulates the velocity and pressure differential between the main line and the reduced branch, significantly reducing localized fluid shear stress and mitigating cavitation risks at the tee junction.

Material Substrates and Lining Process Control

Carbon & Stainless Steel Outer Housing

The outer metal structural shell withstands system pipeline stress, high bolt tightening torque, and structural thermal expansion. Its pressure boundary strictly adheres to global refinery and petrochemical procurement specifications:

• ASTM A234 WPB: Heavy-wall forged or cast carbon steel structures that provide maximum mechanical strength and long-term dimensional stability under continuous thermal cycling conditions.

• ASTM A106 Grade B / ASTM A53 Grade B: High-grade seamless carbon steel pipes designed for high-pressure hazardous fluid transmission loops.

• ASTM A312 Grade 304 / 316 / 316L: Austenitic stainless steel pressure boundaries selected for high-purity cleanrooms, pharmaceutical synthesis, or systems exposed to harsh marine atmospheric corrosion and ambient oxidation.

Advanced Fluoropolymer Linings (PTFE & PFA)

The internal polymer lining fully encapsulates the internal flow path and flanged faces, selected according to process parameters:

• Virgin PTFE (Polytetrafluoroethylene): Provides full chemical resistance across the entire pH 0-14 range. Its inherently low coefficient of friction prevents chemical scaling, crystal deposition, or particulate accumulation along the complex 90-degree internal intersection.

• Melt-Processable PFA (Perfluoroalkoxy Alkane): Recommended for severe operating conditions involving high-temperature thermal cycling combined with vacuum environments. The PFA transfer molding process ensures superior adhesion and uniform thickness at critical internal intersection radii.

Manufacturing Methodologies for Asymmetrical Intersections

• High-Density Molding Process: Due to the asymmetric internal flow path of the reducing tee—where the branch line narrows—specialized automated high-pressure transfer molding or isostatic pressing techniques are used. This uniformly compresses the fluoropolymer matrix against the internal steel wall, ensuring zero micro-porosity and consistent liner thickness across all geometric transitions.

• High Permeation Resistance: The ultra-dense molecular structure of the lining minimizes interstitial gaps, preventing volatile chemical vapors and low-molecular-weight gases from permeating through the liner and corroding the outer steel shell.

• Vacuum Integrity Protection: The liner is mechanically anchored into precision-machined internal locking grooves or stabilized through externally vented casing holes. This design maintains liner stability under negative pressure fluctuations, preventing liner collapse or buckling at elevated temperatures.

Technical Parameters & Standards Compliance

To ensure seamless integration into global automated chemical distribution systems and refinery design frameworks, all manufacturing and testing metrics comply with international standards:

System Performance Specifications

• Nominal Size Range (Main Line): DN15 to DN1200 (1/2" to 48" nominal diameter).

• Nominal Size Range (Reduced Branch): Fully customizable based on system parameters (e.g., matching low-flow pipelines from DN15 and up).

• Pressure Class Compatibility: PN10, PN16, and ASME Class 150 (150LB).

• Face-to-Face Dimensions: Compliant with standard international specifications, or custom-manufactured according to the customer's isometric drawings for specific projects (Material Take-Off, MTO).

Applicable Engineering Standards

• Design & Fitting Specifications: ASTM F1545 (Standard Specification for Plastic-Lined Ferrous Metal Pipes and Fittings).

• Flange Connections & Dimension Standards: ASME B16.5, EN1092-1, DIN 2501, HG/T 20592, JIS 10K.

• Face-to-Face Core Dimensions: Compliant with ASME B16.10, GB/T 12221, or customer-specified layout configurations.

Primary Cross-Industry Applications

The reliable branch isolation and absolute chemical containment of these PTFE/PFA lined reducing tees make them critical components across multiple process distribution fields:

• Chemical Process Industries (CPI): Branch distribution lines transporting concentrated mineral acids, such as sulfuric acid, hydrochloric acid, hydrofluoric acid, and nitric acid, from large-volume bulk storage to reduced reactor feed lines.

• Chlor-Alkali Infrastructure: Installed within piping networks to convey wet chlorine gas, high-concentration caustic soda, and highly corrosive brine filtration streams.

• Pharmaceutical and Biochemical Synthesis: High-purity reduced sampling and dosing loops that require clean fluid transitions, full compatibility with Clean-in-Place (CIP) flushing, and zero metallic ion contamination.

• Semiconductor & Wafer Processing: Critical chemical distribution networks for ultra-pure electronic-grade chemical etching solutions, high-purity solvents, and acid recovery loops.

• Petroleum Refining & Petrochemicals: Deployed within hydrocarbon streams containing hydrofluoric acid alkylation units, sour water strippers, and chemical dosing manifolds.

• Industrial Fertilizer Production: Handling branch flow paths for highly abrasive and corrosive phosphoric acid slurries and ammonia compounds.

Comprehensive Quality Management & Testing Verification

To ensure zero-leak operation, optimal branch transition sealing, and long-term compliance in hazardous lines, every lined reducing tee undergoes rigorous quality control validation before shipment:

1. Electrostatic Spark Testing (Non-Destructive): 100% of the internal lined surface, including the high-stress 90-degree internal intersection and all three flanged faces, is inspected using high-voltage spark testing equipment (10kV to 25kV, depending on liner thickness) to ensure zero pinholes, micro-voids, or structural defects.

2. Hydrostatic Pressure Testing: Pressure retention tests are conducted in strict compliance with API 598, ASTM F1545, or GB/T 13927 standards to guarantee complete sealing integrity under sustained operating loads.

3. Visual and Alignment Audit: Precision inspection of branch perpendicularity, flange face parallelism, concentricity, and overall dimensional conformity to the project MTO configuration data.
