PTFE & PFA 90 Degree Lined Elbows | Corrosion Resistant Fittings

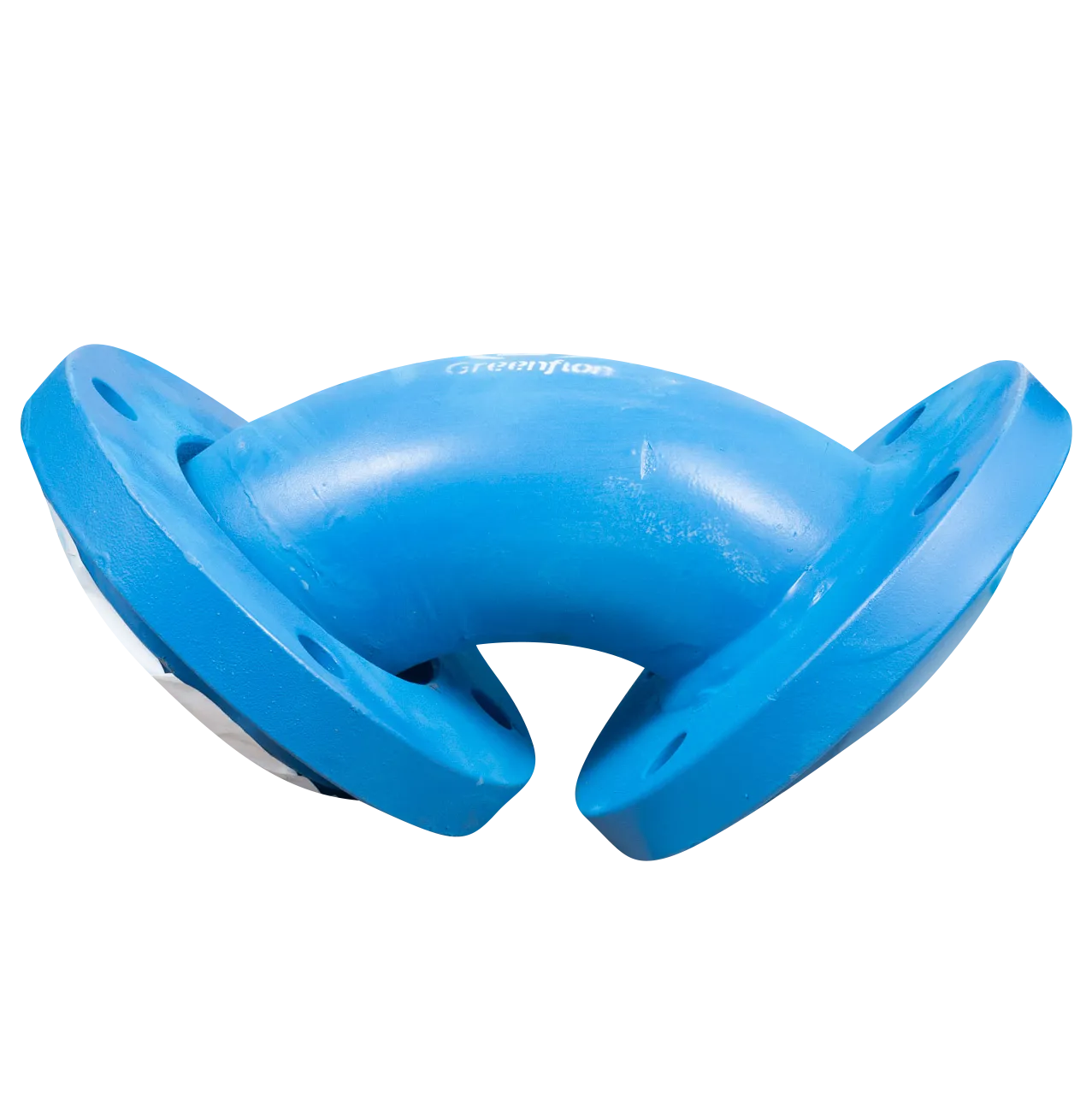

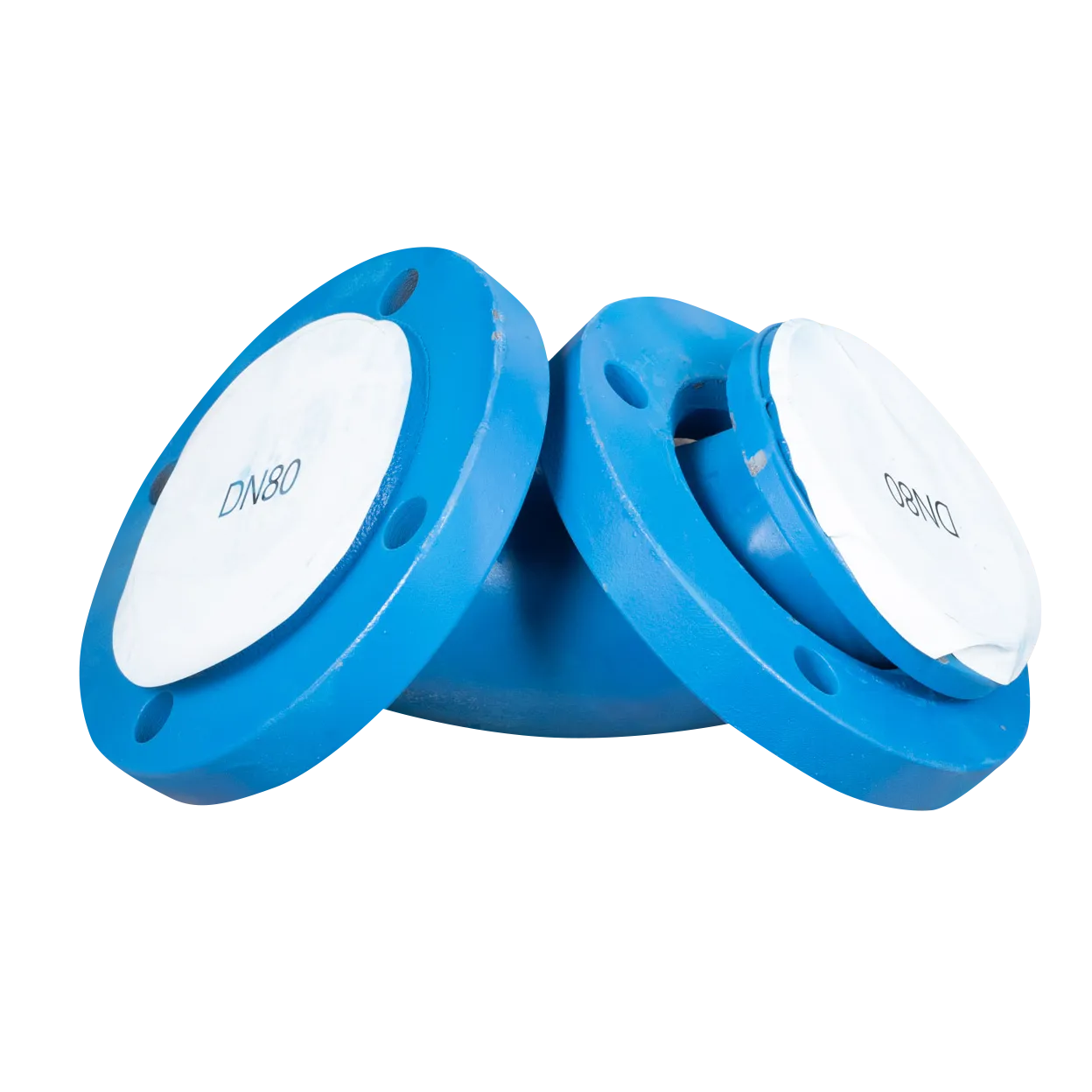

The PTFE/PFA lined 90° elbow is a critical fluid handling component engineered to execute standard right-angle directional changes within heavy-duty chemical process networks. Designed as a key directional fitting, it combines the external structural strength and pressure-containment capabilities of a metallic outer housing with the complete chemical inertness of a premium internal fluoropolymer lining.

By sealing the process flow from the metallic substrate, this engineered design provides an absolute barrier against aggressive corrosive liquids, aggressive gases, and high-purity chemical lines. The lining extends seamlessly across the entire internal curved pathway and over the flange sealing faces, eliminating the risk of interstitial attack, localized wall thinning, and process fluid cross-contamination.

Material Substrates and Lining Process Control

Carbon & Stainless Steel Outer Casing

The outer metallic elbow shell absorbs high piping loads, localized thermal expansion forces, and structural mechanical shocks. The pressure boundary housing complies with standard global refinery and petrochemical materials:

• ASTM A234 Grade WPB: Standard cast/forged carbon steel grade designed for high-integrity piping fittings, providing long-term mechanical reliability under operational stress.

• ASTM A106 Grade B / ASTM A53 Grade B: Heavy-wall seamless carbon steel options utilized for robust industrial chemical piping infrastructures.

• ASTM A312 Grade 304 / 316 / 316L: Premium austenitic stainless steel options recommended for marine processing environments, semiconductor cleanrooms, or settings requiring complete resistance to external atmospheric oxidation.

Advanced Fluoropolymer Linings (PTFE & PFA)

The selection of the internal lining material depends on fluid characteristics, thermal cycling frequencies, and operational flow requirements:

• Virgin PTFE (Polytetrafluoroethylene): Provides total chemical resistance across the continuous 0–14 pH spectrum. Its ultra-smooth surface profile minimizes fluid drag coefficient and prevents crystal accretion, chemical scaling, or product buildup.

• Melt-Processable PFA (Perfluoroalkoxy Alkane): Recommended for severe thermal-vacuum cycling. PFA exhibits superior melt-flow processability, ensuring absolute lining thickness uniformity around the critical 90-degree internal radiuses and intersecting flange components.

Manufacturing Methodologies for Right-Angle Geometries

• High-Pressure Injection and Molding: Because 90° elbows feature a tight, continuous right-angle curve, automated isostatic molding or transfer molding techniques are utilized. This process forces the fluoropolymer material into the cast housing under uniform hydraulic pressure, establishing a highly dense matrix completely free of micro-porosity, thinning, or structural stress concentrations.

• High Permeation Resistance: The ultra-dense processing directly restricts the intermolecular spaces within the polymer layer, preventing low-molecular-weight chemical vapors and aggressive acid gases from permeating through the lining to the steel interface.

• Full Vacuum Stability: The fluoropolymer lining is mechanically anchored into precisely machined locking grooves or venting hole structures within the metallic shell. This prevents liner collapse, buckling, or thermal-vacuum separation during negative pressure spikes or vacuum distillation operations at elevated temperatures.

Technical Parameters & Standards Compliance

To ensure integration into standard global engineering procurement frameworks and automated manufacturing setups, all design and testing workflows conform to international standards:

System Performance Specifications

• Nominal Size Spectrum: DN15 to DN1200 (1/2" up to 48" nominal diameter)

• Pressure Class Parameters: PN10, PN16, and ASME Class 150 (150LB)

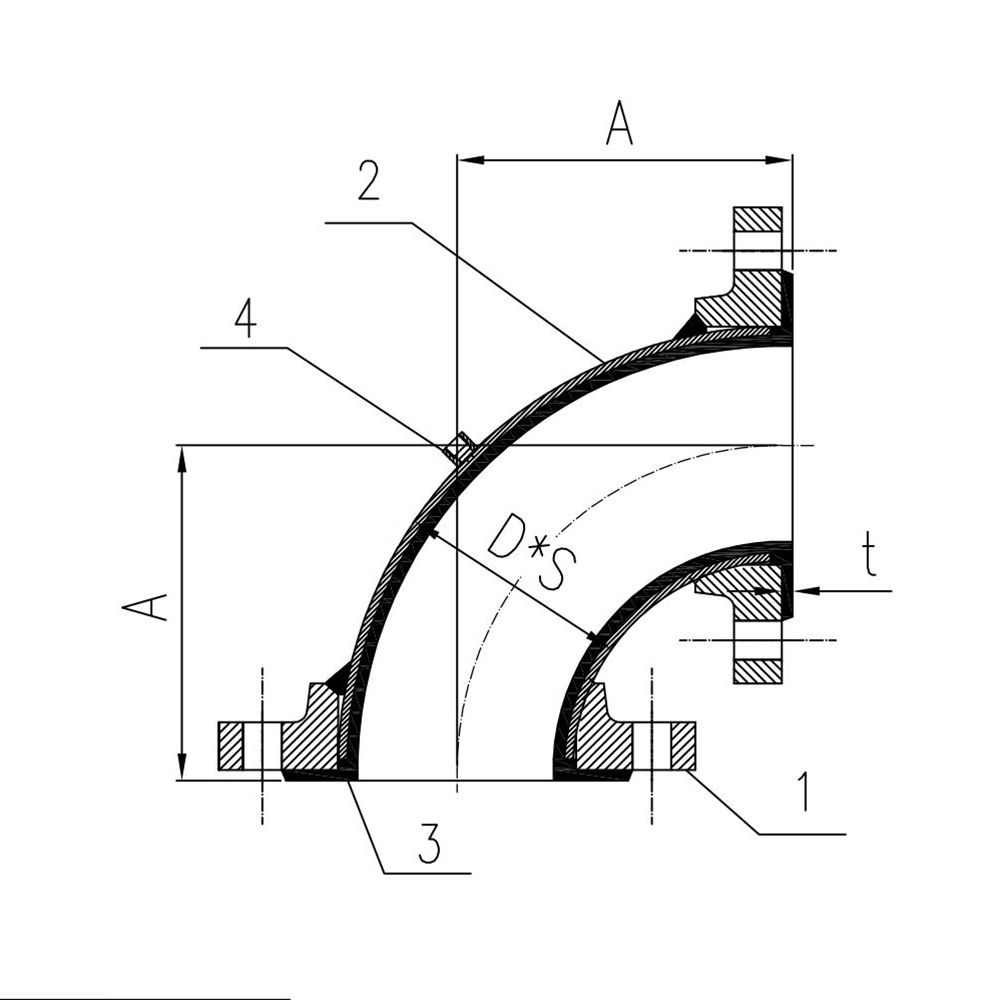

• Center-to-Face Dimensions: Standard dimensions conforming to industry benchmarks, or custom manufactured as per specific project Material Take-Off (MTO) customer isometric drawings.

Applicable Engineering Standards

• Design & Fitting Specifications: ASTM F1545 (Standard Specification for Plastic-Lined Ferrous Metal Pipe and Fittings)

• Flange Attachment & Dimension Standards: ASME B16.5, EN1092-1, DIN 2501, HG/T 20592, JIS 10K

• Face-to-Face Dimensions: Conforming to ASME B16.10, GB/T 12221, or specified customer MTO layout parameters.

Primary Cross-Industry Applications

The chemical resistance and mechanical construction of these PTFE/PFA lined 90° elbows make them essential components across severe-service sectors:

• Chlor-Alkali Infrastructure: Used for directional handling of hot wet chlorine gas, high-concentration sodium hydroxide (caustic soda), and hydrochloric acid recirculation networks.

• Chemical Process Industries (CPI): Positioned at right-angle junctions for transferring bulk aggressive chemical compounds, including concentrated sulfuric, hydrofluoric, and nitric acids.

• Pharmaceutical and Biochemical Synthesis: Non-contaminating piping paths that prevent metal-ion extraction and preserve fluid purity. The ultra-smooth fluoropolymer surfaces support reliable Clean-in-Place (CIP) flush profiles.

• Semiconductor & Wafer Processing: Distribution piping networks for electronic-grade ultra-pure chemicals, active solvent mixtures, and highly concentrated acid-etching solutions.

• Petroleum Refining & Petrochemicals: Deployed in acid alkylation units, sour water strippers, hydrofluoric chemical processing, and piping carrying aggressive catalyst fluid fractions.

• Industrial Fertilizer Production: Handling of highly corrosive and abrasive internal flows of phosphoric acid slurries and volatile ammonia solutions.

• Extractive Metallurgy & Acid Leaching: Directional adjustments for mining acid-leaching agents, copper/gold electrowinning fluids, and chemical wastewater treatment infrastructures.

Comprehensive Quality Management & Testing Verification

To ensure zero-leak operations, maximum process safety, and compliance within hazardous line configurations, every lined 90° elbow undergoes strict quality control sequences before shipment:

1. Electrostatic Spark Testing (Non-Destructive): 100% of the internal lined surface, including the entire curved right-angle path and both flange faces, is verified using high-voltage spark testing equipment (10kV to 25kV based on lining thickness) to confirm zero pinholes, micro-voids, or structural cracks.

2. Hydrostatic Containment Testing: Pressure retention testing is conducted in strict compliance with API 598, ASTM F1545, or GB/T 13927 standards to verify the mechanical integrity of the complete housing assembly under high structural stress.

3. Visual and Geometric Assessment: A comprehensive review of the liner surface consistency, flange face concentricity, and total dimensional compliance relative to the project MTO engineering data.
