PTFE & PFA Hoses | Flexible Chemical Process Hoses

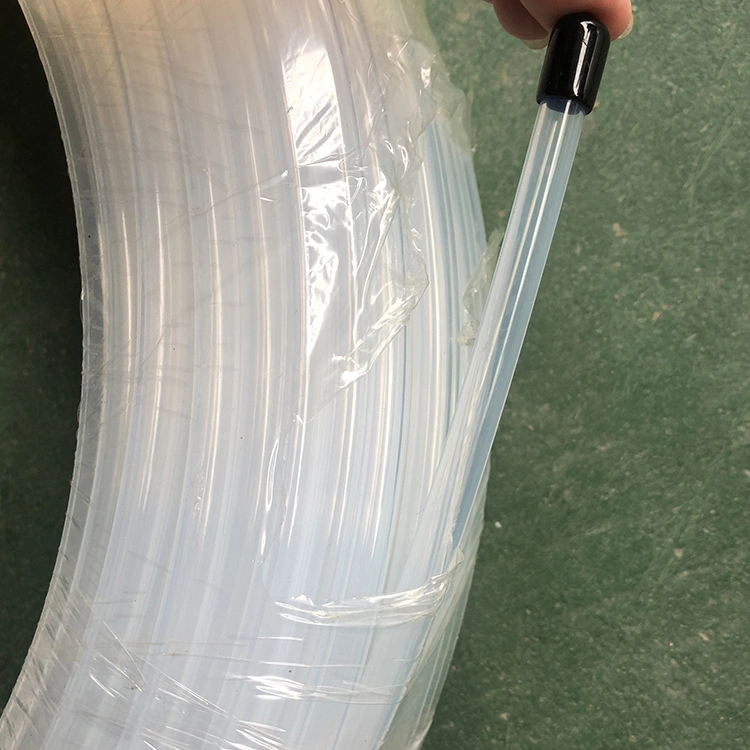

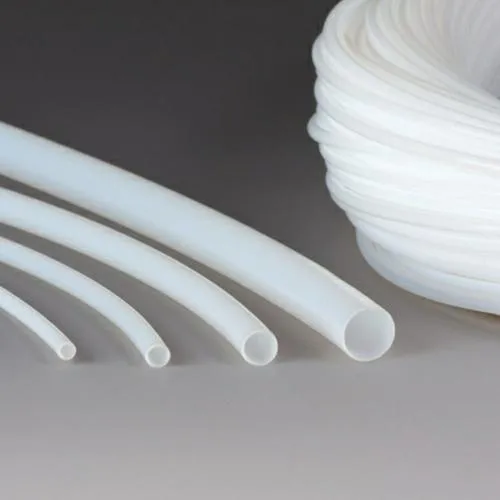

The pure PTFE/PFA extruded tubing belongs to our Pure PTFE Products classification under the PTFE/PFA Pipe & Hose product line. This unbraided, full-fluoropolymer hose is engineered specifically for applications requiring high optical clarity, absolute fluid purity, and extreme flexibility without any metallic interference.

Fabricated entirely from premium virgin resins, these extruded tubes provide an uncompromised barrier against corrosive attack while maintaining clean fluid paths. The non-stick interior eliminates media entrapment, making it the standard choice for localized fluid transmission, high-purity dosing, and protective electrical sleeving.

Material Options and Key Technical Advantages

2.1 Pure PTFE Extruded Tubing

• Total Chemical Inertness: Resistant to virtually all industrial chemicals, solvents, acids, and bases across a full 0–14 pH scale.

• Extreme Temperature Resilience: Maintains structural flexibility and mechanical integrity across a wide operating thermal spectrum from -60°C up to +260°C.

• Ultra-Low Friction Coefficient: The smooth-bore interior ensures maximum flow rates and prevents product adhesion, crystallization, or scaling.

• Electrical Insulation: Excellent dielectric strength makes it a reliable choice for high-temperature wire and cable insulation sleeves.

2.2 Pure PFA Extruded Tubing

• Optical Transparency: Offers superior light transmission and visual clarity, allowing operators to monitor fluid states, bubbles, or flow color in real-time.

• Enhanced Thermal & Stress Resistance: Melt-processable PFA provides higher mechanical strength at elevated temperatures and exceptional stress-crack resistance.

• Ultra-High Purity Matrix: Low extractables and minimal gas permeation rates, making it highly suited for semiconductor and analytical sampling systems.

Product Features & Technical Parameters

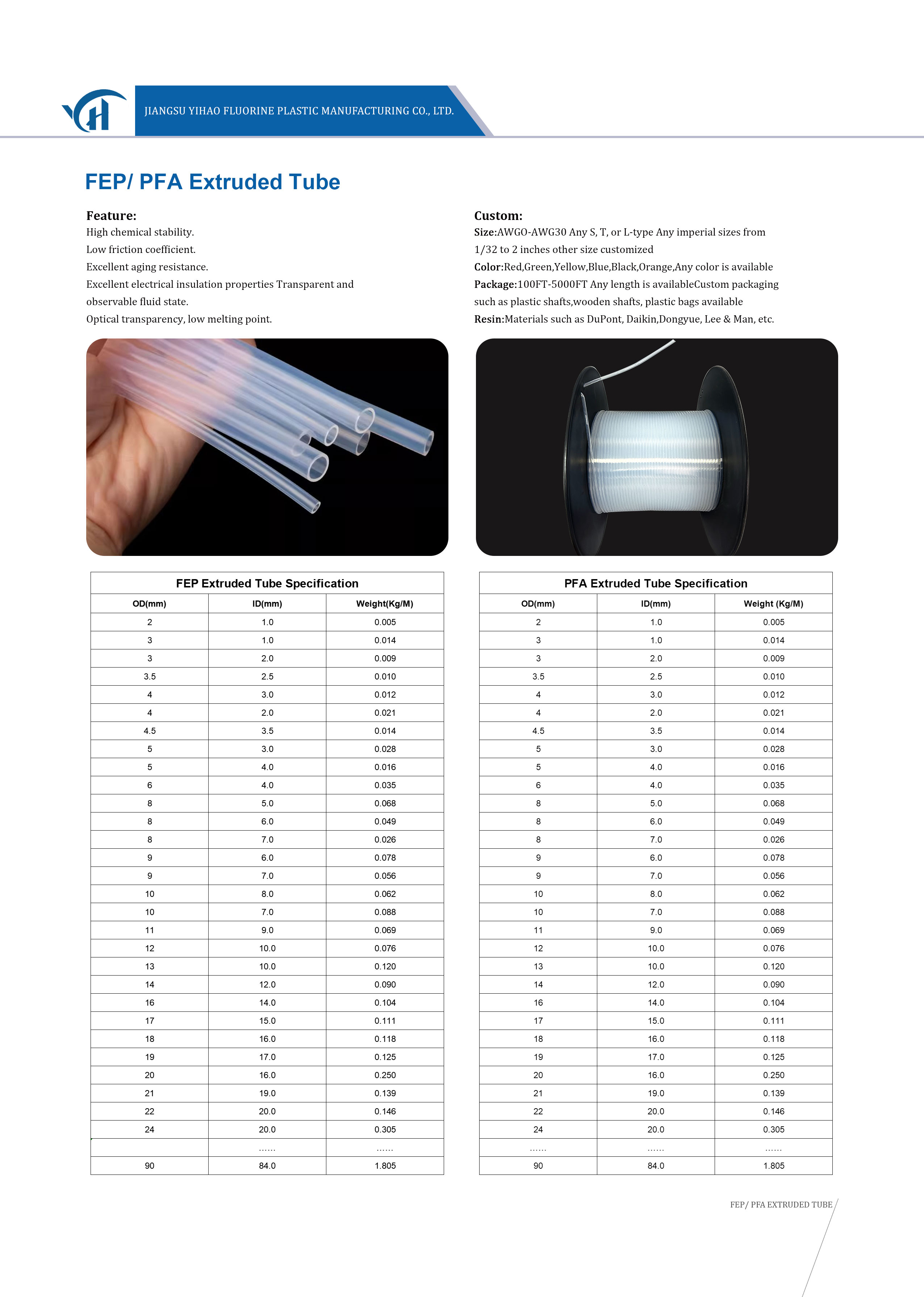

• Size Range Availability: Standard outer diameters (OD) range from 2mm up to 90mm, with matching inner diameters (ID) tailored for varied wall-thickness requirements (e.g., OD 2mm × ID 1mm up to OD 90mm × ID 84mm).

• Pressure Specifications: Rated for low-to-medium pressure fluid transfers, gravity feeds, and vacuum-sampling loops.

• Color Customization: Available in natural transparent, translucent, milky white, or customized industrial color codings (Red, Green, Yellow, Blue, Black, Orange).

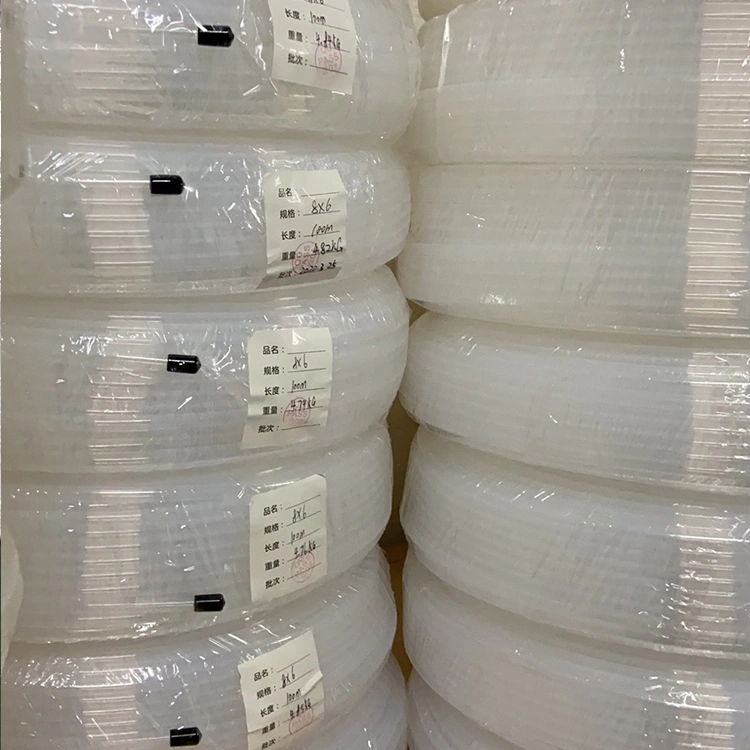

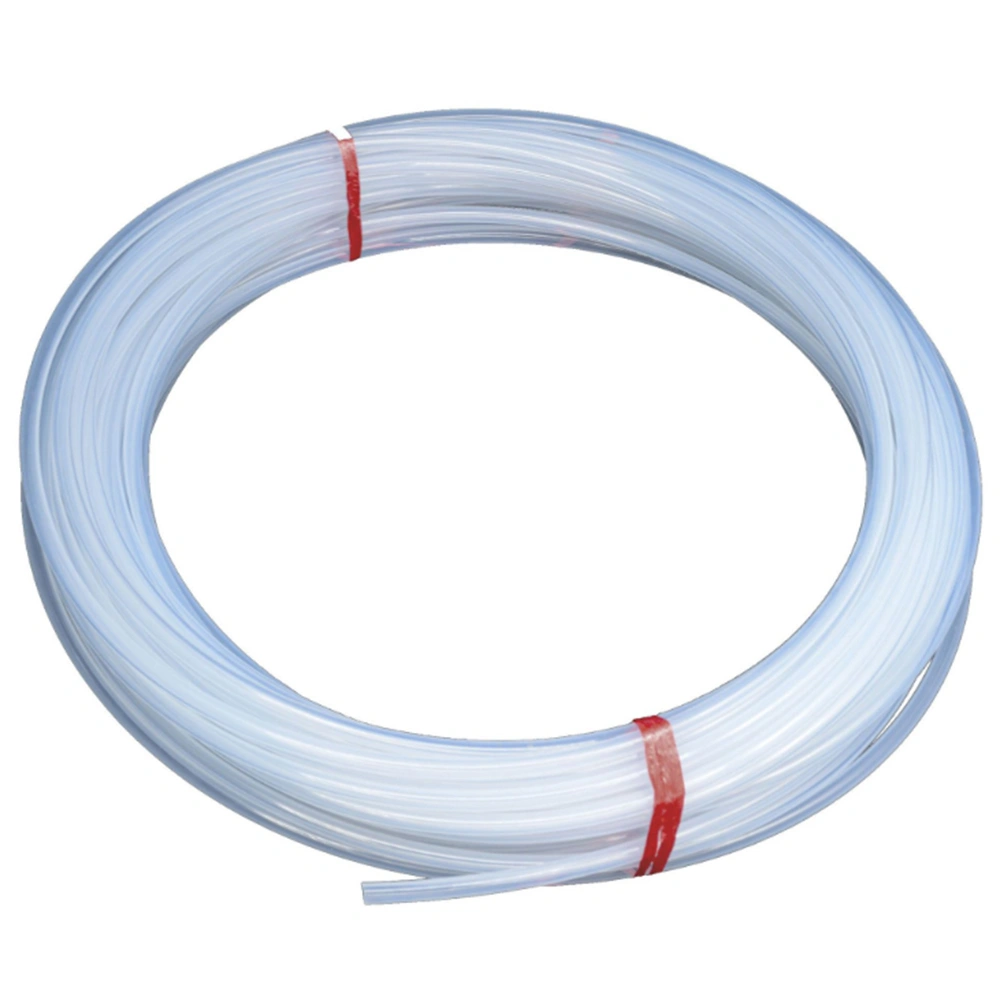

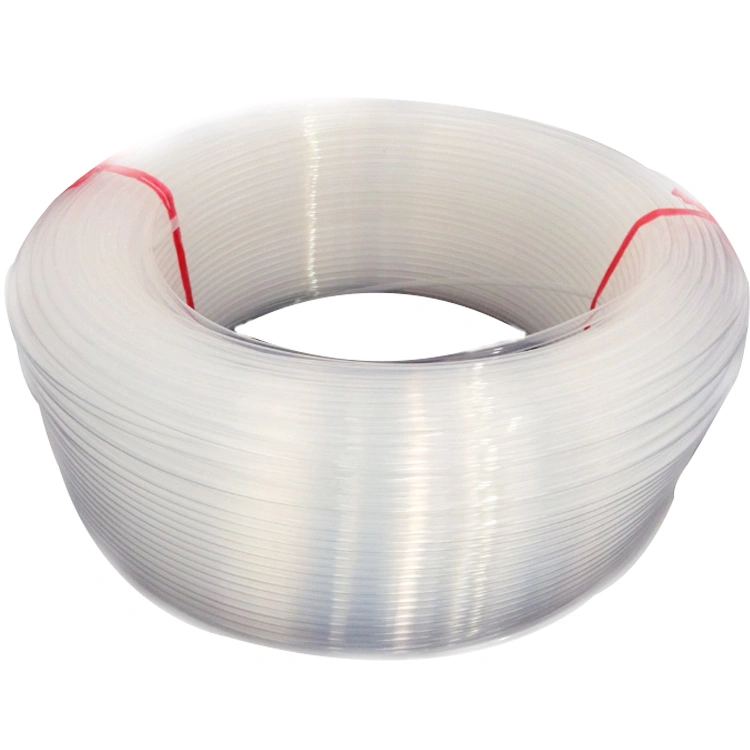

• Packaging Formats: Shipped in long-length continuous coils, spooled on plastic shafts (lengths from 100FT up to 5000FT), or pre-cut to specified blueprint lengths.

• Resin Grade Sourcing: Manufactured utilizing top-tier international polymer resins from premier material providers.

Primary Applications for Pure Fluoropolymer Hoses

Because these tubes contain no metal or external fabric braiding, they are optimized for environments where purity, visibility, and complete insulation are mandatory:

• Semiconductor and Electronics Manufacturing: Used to convey ultra-pure chemicals, deionized water loops, and etching acids within cleanroom wet benches.

• Analytical Instruments & Laboratory Equipment: Ideal for chromatography columns, gas sampling lines, and chemical dosing pumps where zero sample contamination is required.

• Medical & Pharmaceutical Fluid Transfer: Handling aggressive reagents, organic cell cultures, and pharmaceutical feeds. Fully compatible with autoclave and chemical sterilization.

• Automotive & Aerospace Fuel Lines: Used as low-friction, chemical-resistant conduits for specialty fuel transfer, brake fluids, and electrical wire protection bundles.

• Food, Beverage & Dairy Processing: Compliant with strict sanitary standards for transferring flavor concentrates, oils, and aggressive cleaning agents without imparting taste or odor.

Quality Control & Testing Standards

To maintain absolute reliability in critical environments, our pure extruded tubing undergoes strict inspection protocols:

1. Dimensional Uniformity Control: Continuous online laser micrometer measurement during extrusion ensures strict wall-thickness uniformity and tight outer/inner diameter tolerances.

2. Visual Inspection for Optical Purity: 100% inspection of transparent and translucent lines to ensure complete freedom from carbon spots, contamination, micro-bubbles, or extrusion lines.

3. Physical and Elongation Testing: Random sampling checks for tensile strength, elongation capacity, and burst pressure thresholds to verify resin curing stability.
