The pure PTFE/PFA extruded tube is a high-performance, single-layer fluoropolymer conduit engineered for high-purity chemical processing, fluid transport instrumentation, and advanced electrical insulation systems. This non-braided perfluoropolymer tubing is characterized by high dimensional stability and absolute material integrity.

While standard industrial hoses often imply complete flexible sub-assemblies with terminal end-fittings, our precision-extruded Tube line serves as the foundational structural piping element. It delivers tight outer diameter (OD) and inner diameter (ID) tolerances, exceptional burst pressure resistance relative to wall thickness, and an ultra-smooth internal matrix. This prevents trace contamination, chemical retention, or flow degradation across critical analytical and fluidic paths.

Advanced Material Substrates & Processing Control

2.1 Premium Virgin Resins

To ensure compliance with strict global chemical processing and semiconductor cleanroom parameters, all tubes are extruded exclusively from premium virgin, non-recycled fluoropolymer resins:

• Virgin PTFE (Polytetrafluoroethylene) Tubes: Delivering the highest thermal threshold (up to +260°C) and a universally inert boundary layer. It is entirely unaffected by almost all known industrial solvents, concentrated acids, strong oxidizers, and aggressive alkaline solutions across the entire 0–14 pH scale.

• Melt-Processable PFA (Perfluoroalkoxy) Tubes: Engineered for applications requiring high optical clarity and advanced stress-crack resistance under continuous thermal fluctuations. PFA tubes feature lower gas-vapor permeation rates and an ultra-low level of metallic ion extractables, making them standard in high-purity processing.

2.2 Precision Extrusion and Geometrical Integrity

• Continuous Paste/Melt Extrusion: Utilizing advanced automated extrusion controls, the fluoropolymer molecules are aligned linearly along the longitudinal axis of the tube. This method minimizes internal structural stresses, eliminates micro-void defects, and optimizes mechanical kink resistance.

• Tight Dimensional Tolerances: Continuous online laser micrometers measure wall thickness and concentricity parameters in real time. This ensures seamless pairing with compression fittings, bite-type connectors, or custom analytical manifold blocks without leakage.

• Non-Stick Internal Surface: The exceptionally low friction coefficient minimizes internal fluid drag (low pressure drops) and prevents active chemical elements from building up scale, crystallizing, or accumulating biological residues.

High-Performance Features & Technical Parameters

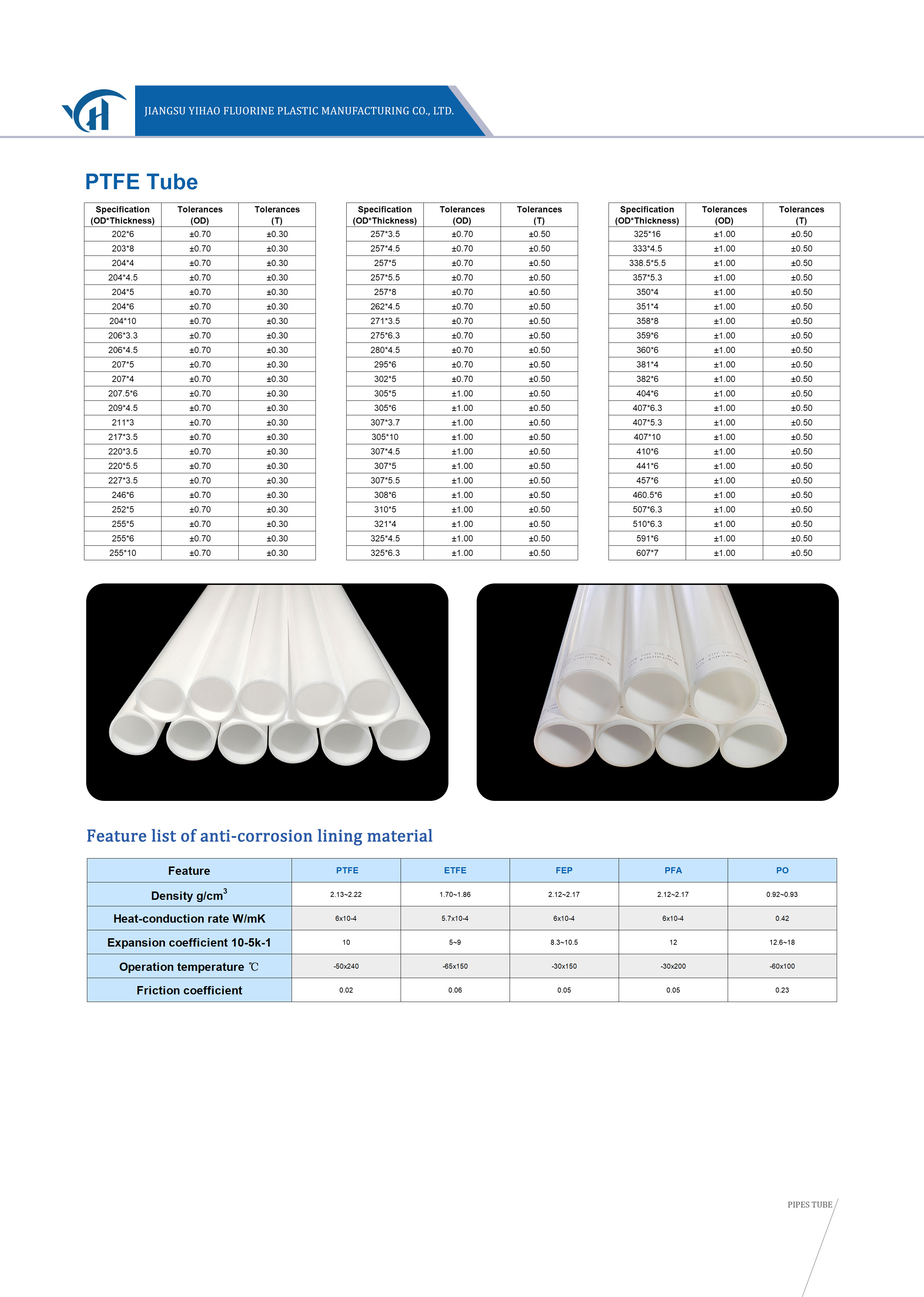

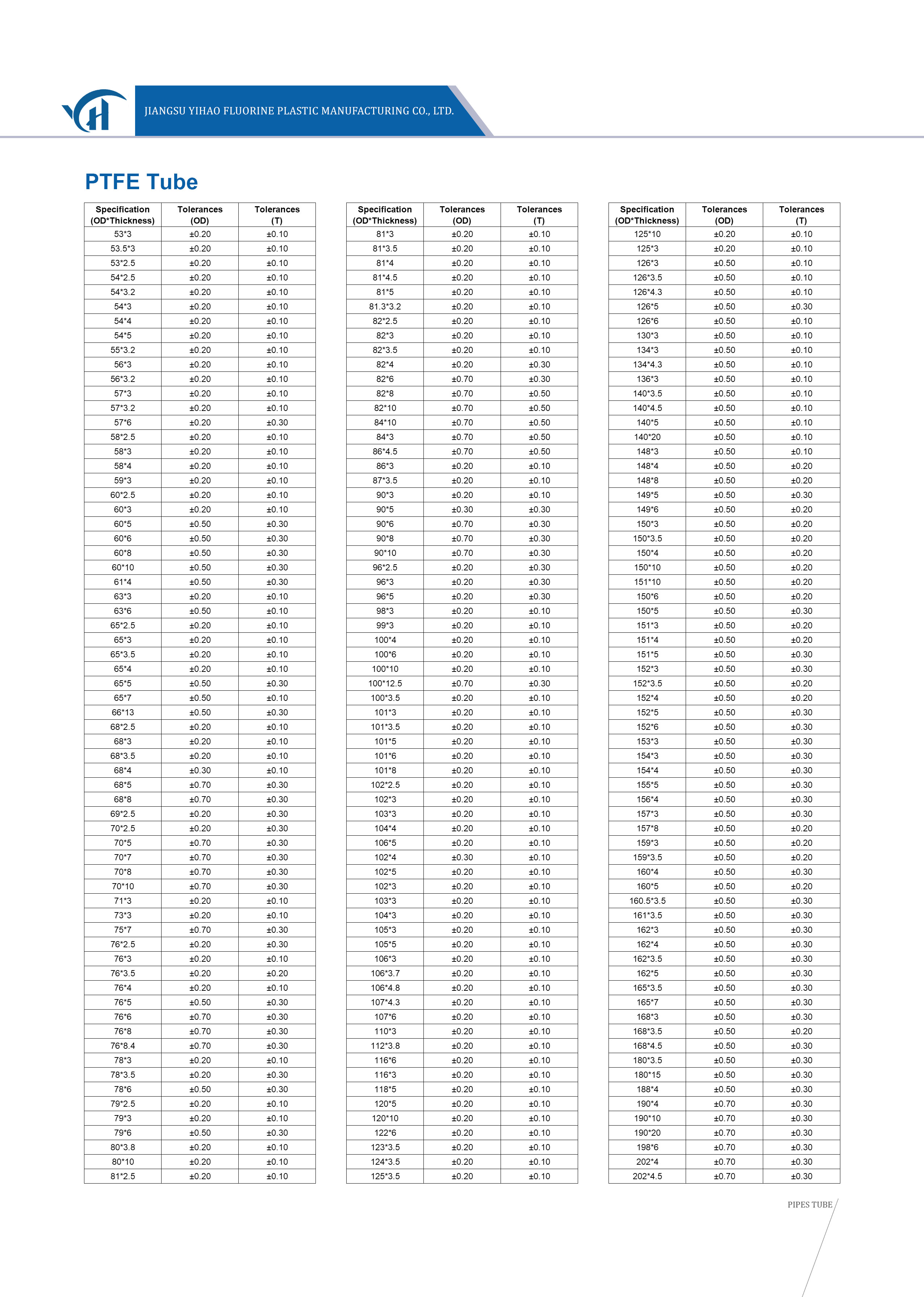

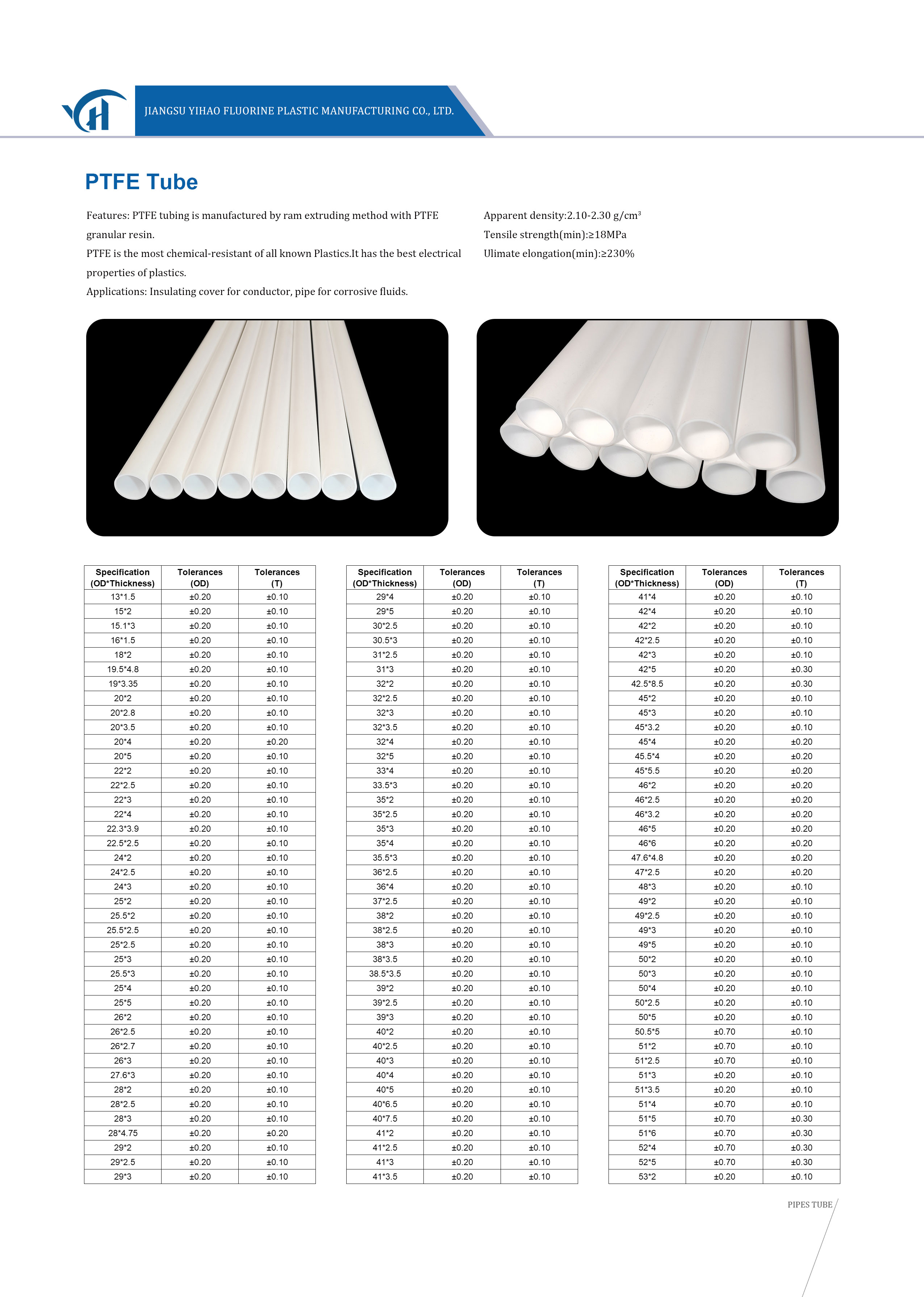

• Extensive Sizing Profile: Standard outer diameters (OD) range from 2mm up to 90mm, with wall thicknesses precisely calibrated to support low-gravity drainage up to medium-pressure injection lines.

• Broad Thermal Operation Spectrum: Maintains reliable mechanical properties and flexural flexibility from cryogenic environments of -60°C up to elevated operating thermal loads of +260°C (-76°F to +500°F).

• Dielectric & Electrical Insulation: Exceptional dielectric strength and high arc resistance make these tubes suitable as protective, high-temperature sleeving for heavy-duty electrical wire harnesses and sensor cables.

• Color Schemes & Transparency: Offered in natural semi-transparent (PFA), milky white (PTFE), or custom color-coded variants (including Red, Blue, Green, Yellow, Black) for line identification inside complex multi-fluid manifolds.

• Convenient Packaging Formats: Supplied in continuous long-length coils, wrapped on durable plastic spools to prevent kinking during transport, or provided in custom pre-cut straight sticks.

Primary Cross-Industry Applications

Because our pure extruded tubes do not contain external fabric reinforcements or metallic wire layers, they are highly optimized for pure fluid transport, aggressive gas sampling, and total electrical isolation:

• Semiconductor Wet Benches & Ultrapure Lines: Conducting ultra-clean chemicals, ultra-pure water (UPW), and concentrated chemical etching reagents directly within automated silicon wafer washing loops.

• Analytical Instruments & Lab Chromatography: Deployed as the primary internal fluidic lines for HPLC (High-Performance Liquid Chromatography), gas sampling, and precision automated titration pumps where sample cross-contamination must be zero.

• Pharmaceutical & Medical Fluid Dosing: Safely handling biological matrices, cell cultures, and active medical solutions. The smooth, non-porous structure facilitates efficient Clean-in-Place (CIP) flushing cycles and withstands complete autoclave steam sterilization.

• Chemical Dosing & Environmental Monitoring Systems: Delivering raw inputs, active reagents, and heavy chemical effluents in automated dosing skids, stacks, and gas emissions analytical test shelters.

• High-Temperature Insulation Sleeving: Serving as thermal and chemical insulation conduits for critical wire bundles, heating elements, and industrial thermocouple probes exposed to aggressive internal environments.

Comprehensive Quality Management & Testing Verification

To ensure zero micro-fault performance when handling volatile or ultra-pure process runs, our entire extruded tube line undergoes strict quality control protocols:

1. Continuous Laser Micrometer Verification: Non-contact dual-axis laser inspection measures the OD and concentricity parameters continuously throughout the extrusion line to ensure strict tolerance compliance.

2. Sub-surface Defect & Purity Audit: 100% visual inspection over transparent and translucent production lines to confirm complete freedom from carbon specks, extrusion lines, micro-bubbles, or structural micro-void faults.

3. Tensile Properties & Elongation Checks: Destructive batch testing verify the crystallization rate, structural yield strength, and maximum elongation properties of the extruded resin matrix to confirm optimal flexibility and burst resistance.
