Virgin PTFE & PFA Sheets | High-Performance Fluoropolymer Plates

The pure PTFE/PFA sheet series forms a foundational element within our Pure PTFE Products segment. Engineered to deliver an absolute chemical barrier and exceptional surface performance, these flat stock fluoropolymer profiles are produced as either rigid molded plates or flexible skived rolls.

Unlike fluid-conveying tubes or hoses, industrial Sheets serve as high-integrity substrate materials across the process, chemical, and electrical manufacturing sectors. They are widely utilized for stamping custom chemical-resistant gaskets, machining structural sliding bearings, insulating high-voltage electrical equipment, and executing complete internal thermo-bonded corrosion linings inside bulk steel reaction vessels, storage tanks, and industrial chutes.

Manufacturing Classifications and Material Profiles

Technical Distinctions by Production Method

Depending on the target application and thickness specifications, the material is processed via two distinctive manufacturing methodologies:

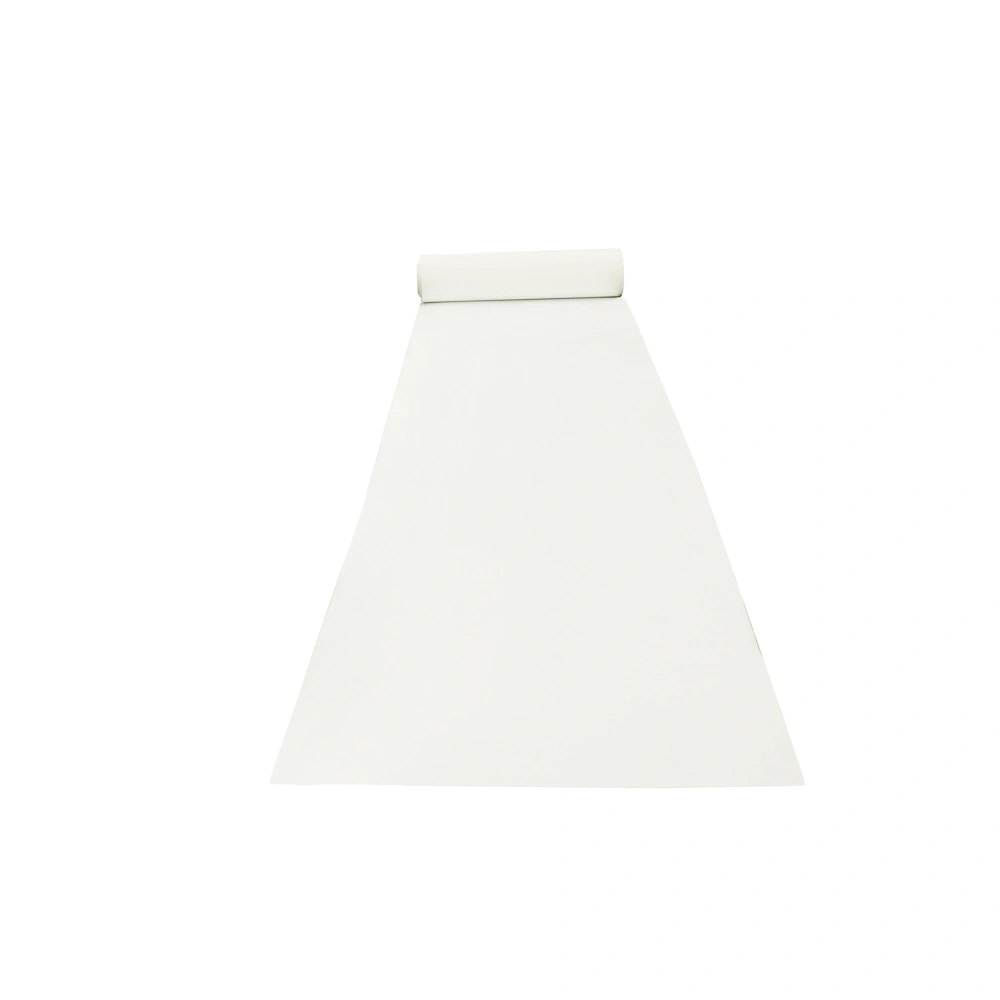

• Skived PTFE/PFA Sheets (Continuous Rolls): Produced by executing continuous high-precision rotary slicing on compressed cylindrical fluoropolymer billets. This process yields long, flexible continuous rolls optimized for thin gasket punching, chemical lining overlays, and electrical coil insulation wraps.

• Molded PTFE/PFA Plates (Individual Blocks): Manufactured through a high-pressure compression molding sequence followed by precise thermal sintering cycles. This method delivers thick, structurally dense sheets with high dimensional stability, optimized for subsequent mechanical machining into complex structural components.

Resin Selection Parameters

• Virgin PTFE Sheets: Demonstrates universal chemical immunity across the complete 0–14 pH scale and exhibits a low static/dynamic friction coefficient. It provides continuous stability across extreme thermal boundaries from -180°C up to +260°C.

• Melt-Processable PFA Sheets: Recommended for highly specialized thermo-welding internal tank linings or ultra-high purity vacuum applications. PFA sheets feature exceptional resistance to environmental stress-cracking, lower gas permeation kinetics, and a highly smooth translucent profile that limits biological or micro-particulate adhesion.

Key Technical Properties & Performance Indicators

• Absolute Corrosion Isolation: Completely unattacked by concentrated mineral acids, active halogens, organic solvents, caustic alkalis, and strong cryogenic oxidizers.

• Non-Stick Surface Energy: The exceptionally low surface tension prevents aggressive chemical residues, heavy tars, slurry polymers, or crystallized salts from sticking to the plate face, optimizing cleanability.

• Dielectric Isolation Capacity: High dielectric breakdown voltage paired with low loss factors over wide frequency ranges makes it a reliable insulation barrier for chemical sensors and semiconductor instrumentation.

• Load-Bearing & Slip Properties: Low friction values prevent slip-stick behavior when utilized as mechanical slide plates or structural expansion bearings under heavy construction frameworks or bridge supports.

Primary Cross-Industry Applications

• Chemical Vessel & Tank Lining: Adhered directly to the interior steel walls of massive storage vessels, extraction columns, and aggressive agitator blades via sodium-naphthalene etching and bonding to provide absolute chemical isolation.

• Industrial Gasket & Seal Cutting: Serves as the raw flat stock material for cutting full-face pipe gaskets, envelope seals, and structural spiral-wound filler strips utilized in hazardous chemical pipelines.

• Semiconductor Wet Process Components: Utilized to fabricate liner panels, protective work-surfaces, and structural shield partitions for wafer etching stations where metal-ion extraction must be entirely prevented.

• Mechanical Slide Bearings & Wear Strips: Positioned as low-friction pads beneath heavy pipelines, heat exchangers, and construction beams to facilitate smooth movement during thermal expansion cycles.

• Electrical & Power Electronics Isolation: High-dielectric sheet barriers inside transformers, capacitor blocks, and industrial switchgear operating under continuous thermal load.

Quality Management & Non-Destructive Testing

To safeguard chemical process integrity and ensure long-term containment stability under operational stress, all sheets are subjected to rigorous verification workflows:

1. Thickness and Flatness Tolerance Profiling: Precision multi-point micrometer evaluations verify uniform cross-sectional density and gauge consistency across the sheet's surface area.

2. Internal Defect Micro-Audit: Visual and sub-surface validation over skived sheets to confirm zero structural inclusions, micro-void voids, surface pinholes, or uneven density patterns.

3. Tensile and Elongation Compliance Checks: Material samples from each batch are verified for tensile strength and elongation metrics to ensure full mechanical flexibility during cold-forming or tight-radius tank bending processes.
